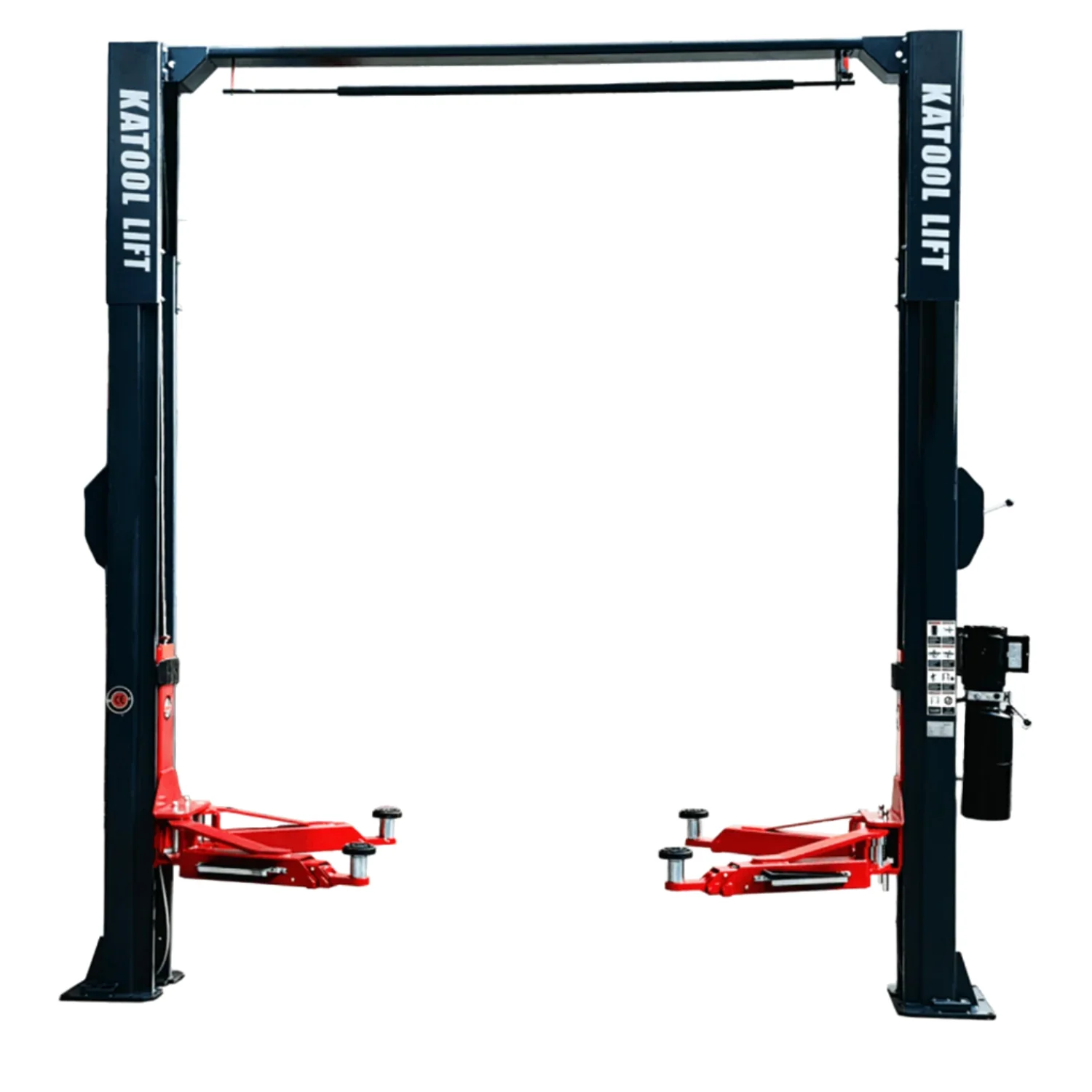

[CLEARANCE] KT-AS110D Two Post Asymmetrical Vehicle Lift 11,000lbs with Single Point Lock Release. Designed for efficiency and safety, this heavy-duty lift features an 11,000lbs capacity and asymmetrical posts for optimal vehicle access. The single-point lock release ensures quick and secure operation. Available at clearance price with limited stock. Warehouse pickup recommended. Shipping not included. Perfect for upgrading any professional garage!

User Manual

Condition Note

Brand new.

Terms for "Clearance" Products

• Final Sale: The purchase of this product is considered a final transaction.
• No Returns or Exchanges: We do not accept returns or exchanges for this product.
• No Warranty: This product is sold "as is" without any warranty.
• Free shipping is not available for [Clearance] items!
• Limited-Time Promotion, with no extensions.
• [Acceptance of Terms]: Purchase acknowledges acceptance of these terms.

*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.



Specifications



Dimension(LxWxH)
Net weight	1323 lbs
Lifting Capacity	11000lbs/4990KG
Max. Lifting Height	70.75" / 1800mm
Min. Height	3.74" / 95mm
Height Overall	141.25" / 3587mm
Width Overall	134.65" / 3420mm
Outside Column	120.4" / 3058mm
Inside Column	109.37" / 2778mm
Drive-Thru Clearance	99.61" / 2530mm
Motor	220VAC/60HZ/1PH

Feature

• 11000 lbs (4990 KG) lifting capacity.
• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
• Single Point Lock Release.

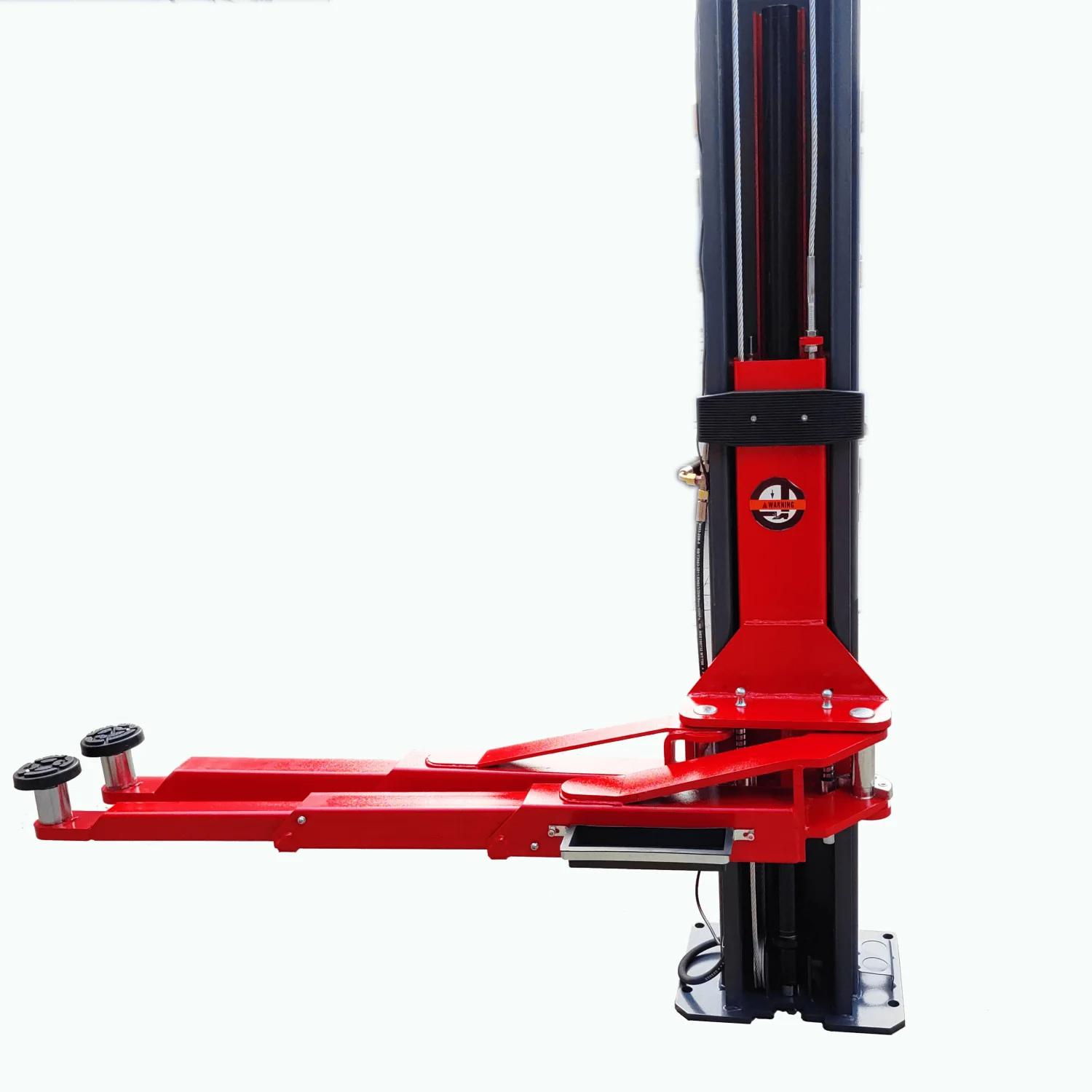

• Asymmetric arms.
• Direct Drive Cylinders.
• Rubber pad door opening protection.

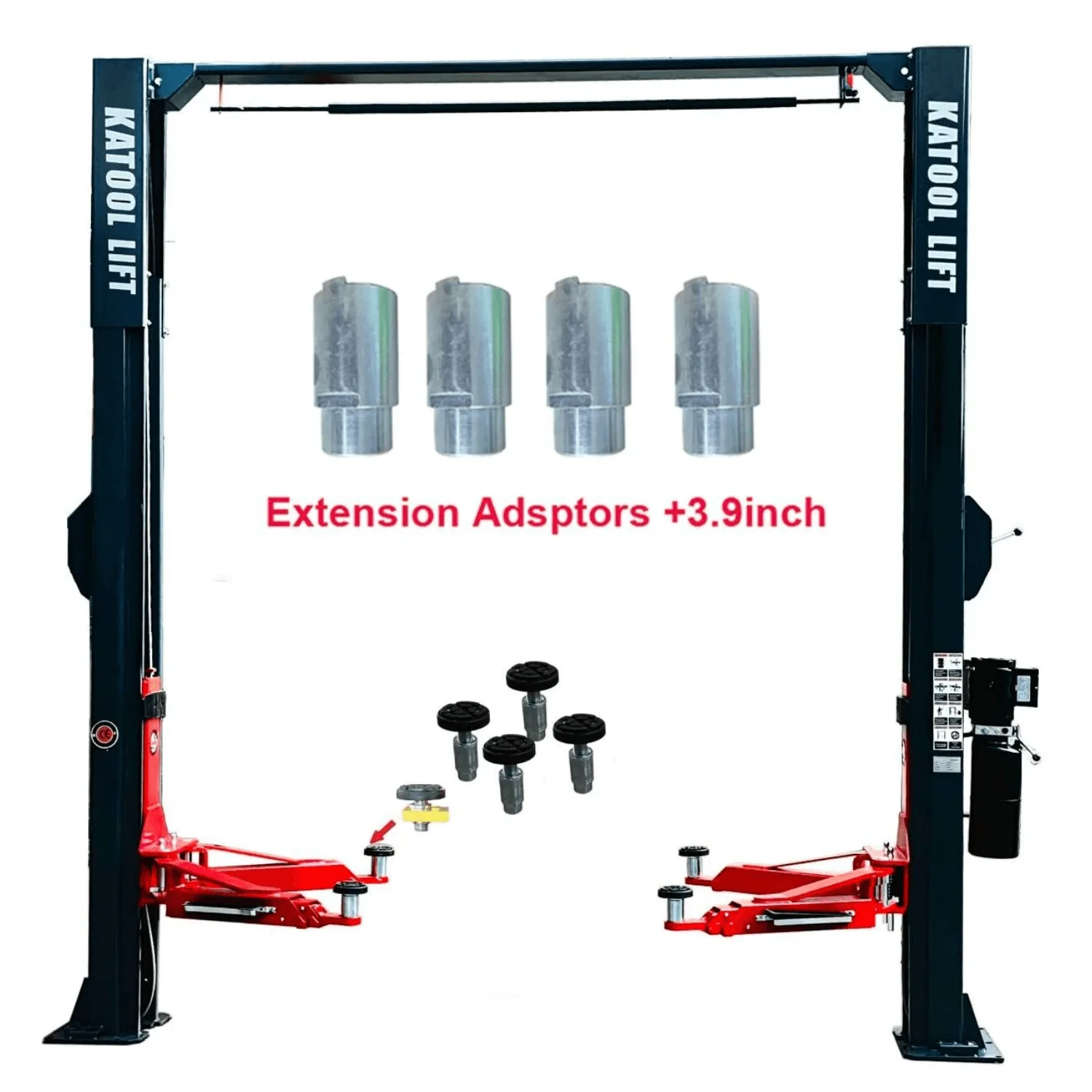

• Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.
• Overhead safety shutoff bar.
• Feet-protection safety guardrails with toolbox.
• High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional).


Package Size

• LxWxH (inch): 112"x18"x36"
• Weight (lb): 1350
• We don't provide unloading services including the liftgate service, please ensure a forklift or equivalent equipment is available for unloading.
