The HELI Electric Walkie Pallet Jack is ideal for moving and lifting items, products, pallets inside your warehouse, supermarket, or workspace. With the perfect design, and high load capacity (up to 3,300 lbs), this jack can get your work done efficiently and conveniently. Now, you don’t need to control the pallet jack manually, instead, you can manage all the tasks through a control panel and buttons. Don’t wait anymore, get it now.

Note: Temporarily out of stock! Delivery will be delayed by 2-3 months.



Specifications



Model		CBD15J-Li2
Loading capacity	lbs	3300
Load center	in	24
Operating type		Walkie
Wheels type		PU
Max. lifting height	in	7.87

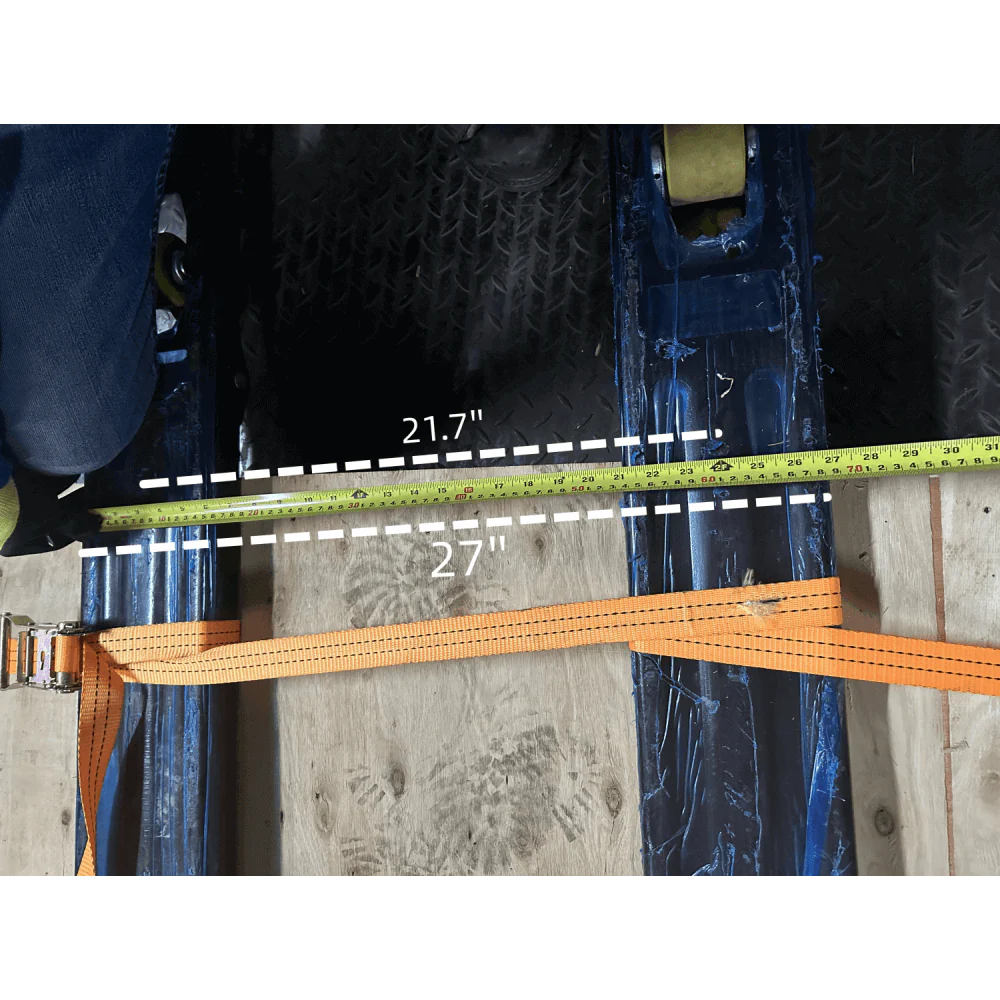

Overall fork width	in	21.7/27.0

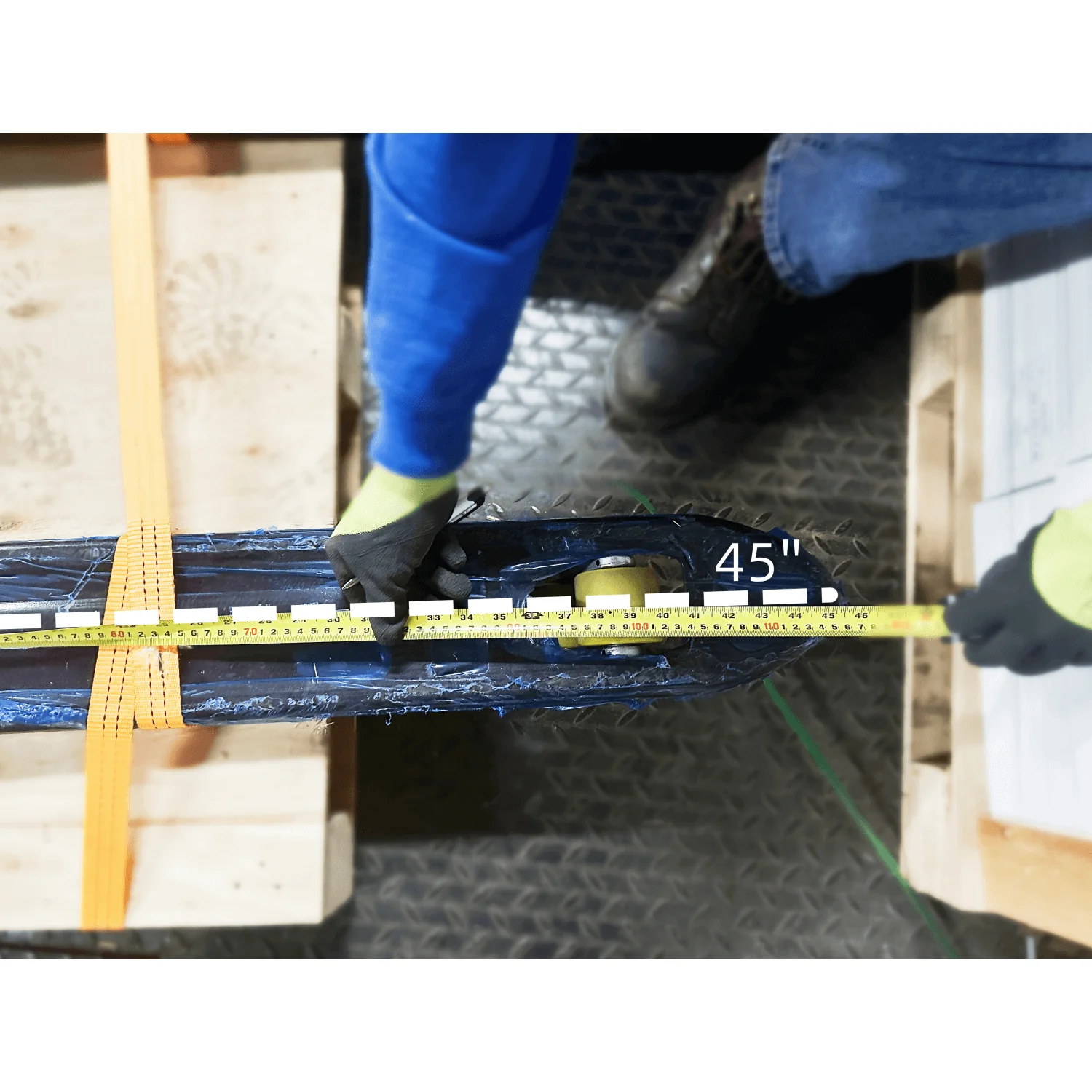

Fork length	in	45
Overall length	in	60.7
Overall width	in	21.7/27
Overall height (with handle)	in	44
Min. Turning radius	in	53.3
Min. Aisle width for pallets 1000x12000	in	69.3
Travel speed, laden/unladen	mph	2.6/2.8
Driving motor	hp	DC 1.0
Battery voltage/capacity	V/Ah	24/28
Controller		CURTIS
Battery Weight	lbs	15
Service weight with battery	lbs	340

Feature

• This jack is equipped with a 24V/28Ah (1.5 tons) portable lithium battery pack which is easy and convenient for battery
• The emergency reverse device ensures safety.
• The vehicle is simple and dexterous with a steering radius of 1355 mm. It is suitable for ultra-narrow aisle operation.
•  Integrated handle design integrating key switch and electric meter is simple and comfortable for operation.

Package Size

• L*W*H (inch): 61*27*44
• Weight (lb): 340
• Please have a forklift or equivalent ready for unloading
