Introducing the KT-4H150 Heavy Duty 4-Post Alignment Lift – your ultimate solution for seamless automotive maintenance and alignment. With a robust lifting capacity of 15,000 lbs, this heavy-duty lift is designed to effortlessly handle a variety of vehicles, from compact cars to larger trucks.
Optional Accessories:
Rolling Jack: Enhance your lifting capabilities with the optional rolling jack. This addition allows you to access specific areas of your vehicle with ease, making it a valuable tool for comprehensive automotive care.
Casters: Opt for the convenience of casters to transform your lift into a mobile workstation. Effortlessly move your lift around your garage for maximum flexibility. (Casters not included.)
User Manual

*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.



Specifications



Dimension(LxWxH)
Net weight	4850 lbs
Lifting Capacity	11000lbs/4990KG
Max. Lifting Height	92.52" / 2350mm
Lifting Time	95s Up / 55s Down
Width Overall	136.06" / 3456mm
Length Overall	245.31" / 6231mm (with Ramps)
Inside Columns	118.11" / 3000mm
Min. Runway Height	9.3" / 236mm
Motor	220VAC/60HZ/1PH

Feature

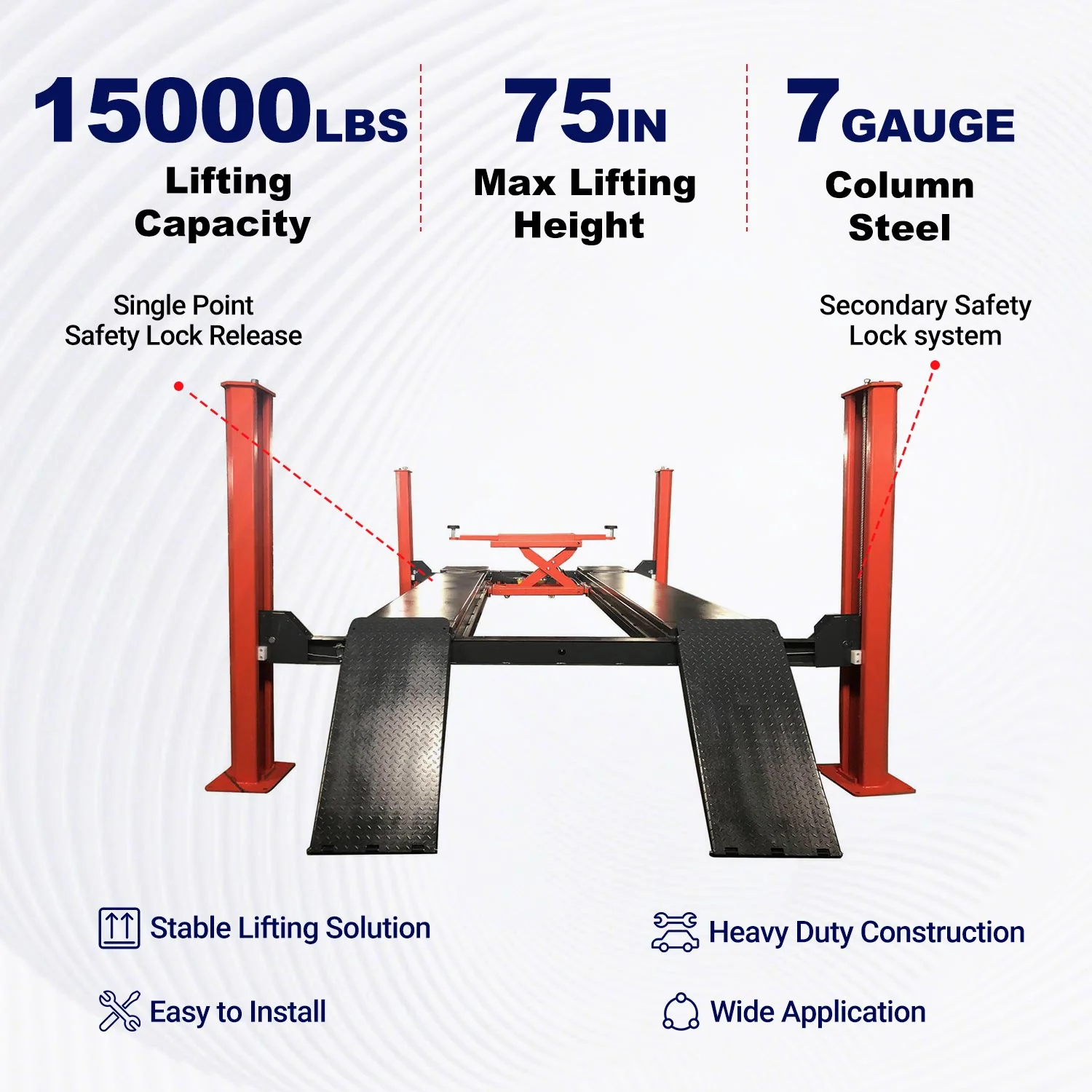

• 15000lbs lifting capacity.
• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
• Single Point Manual Safety Lock Release.
• Four mechanical locking devices, each equipped with both primary and secondary safety locks.
• Powerside column can be installed at both sides, front or rear.
• Non-skid diamond platforms and adjustable safety lock ladders.
• One 6000 lbs rolling jack is included.
• Comes with turn tables for wheel alignment.
• High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional).


Package Size

• LxWxH (inch):
  Box A: 200x27x33;
  Box B: 40x24x15.

• Weight (lb): 1257
  Box A: 4239;
  Box B: 441.

• We don't provide unloading services, please ensure a forklift or equivalent equipment is available for unloading.
