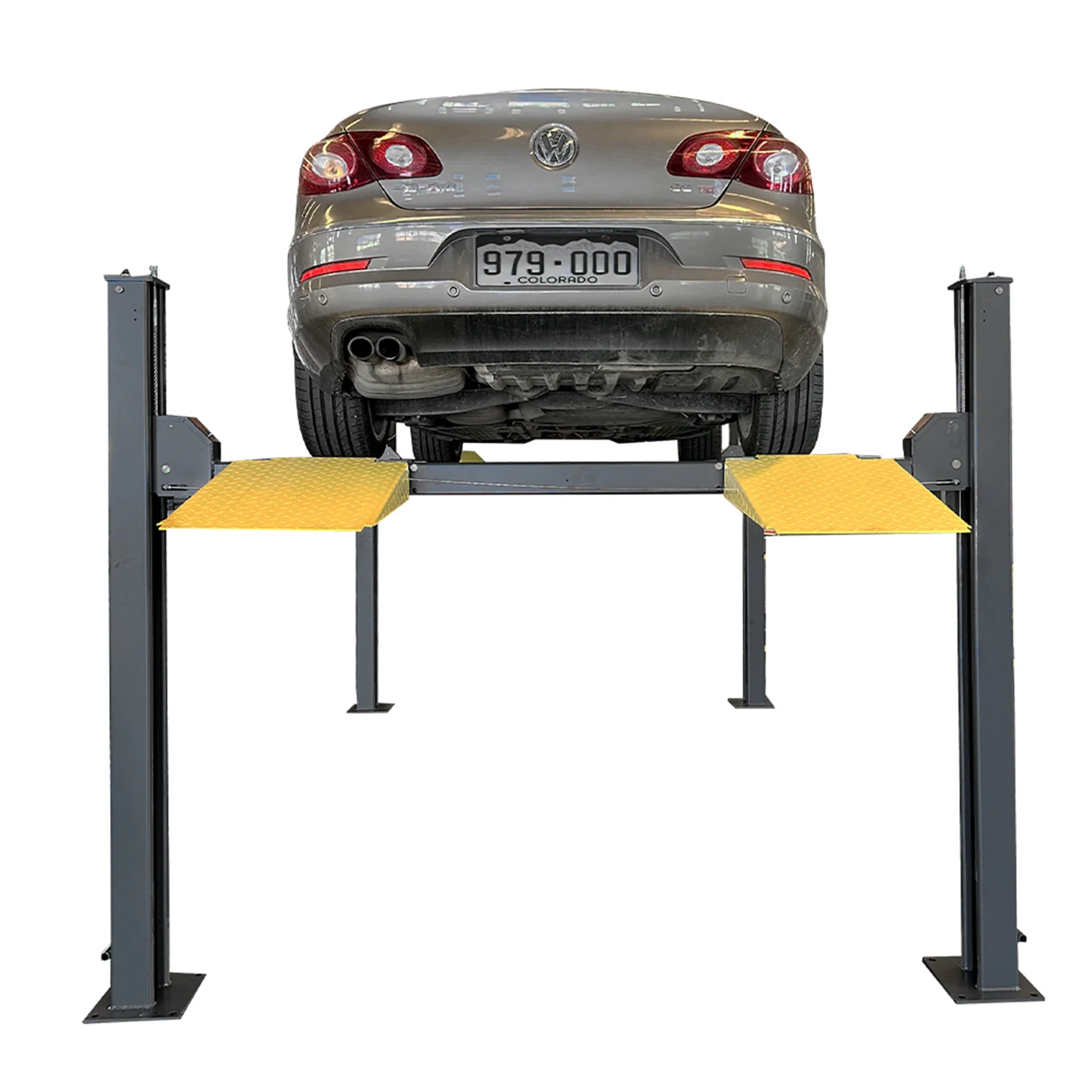

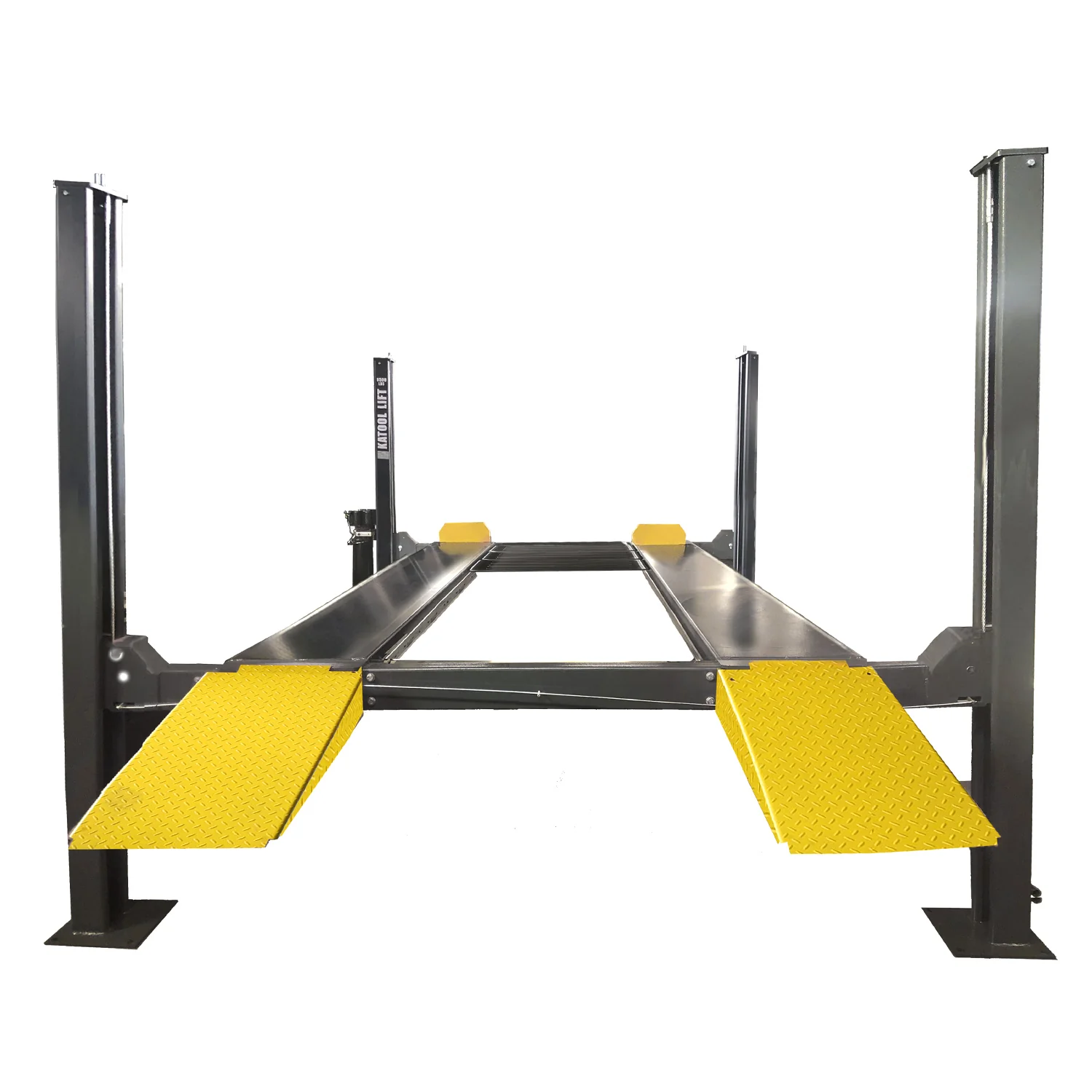

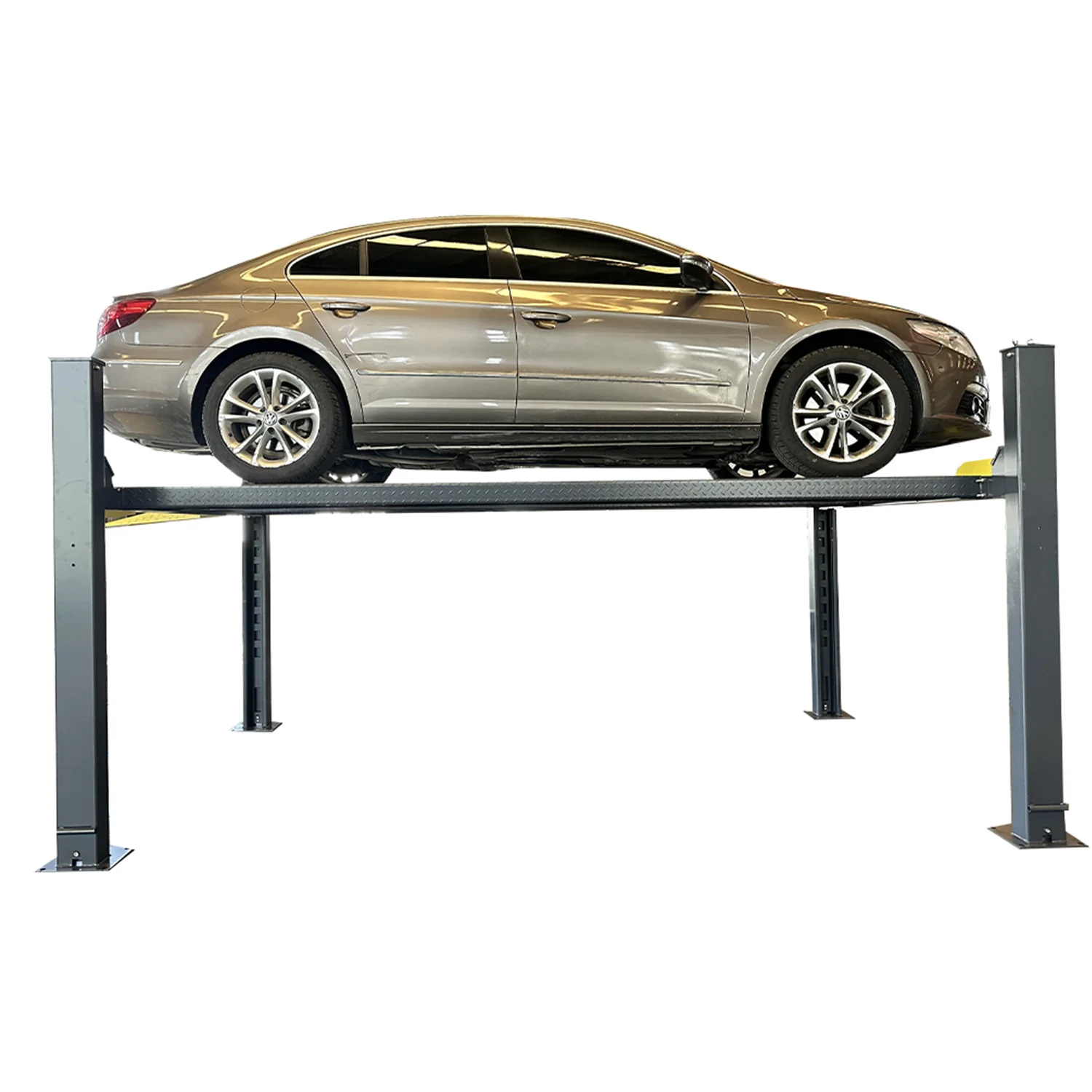

Introducing the T-4H850 Heavy Duty 4-Post Car Lift, a powerhouse in automotive lifting with an impressive 8,500 lbs capacity. Engineered for durability and precision, this lift ensures secure vehicle maintenance. The included casters offer unmatched mobility, allowing you to effortlessly maneuver your lift for optimal garage organization. Whether you're a professional mechanic or a dedicated DIY enthusiast, the T-4H850 delivers reliable performance and convenience. Elevate your automotive workspace with this heavy-duty lift, combining strength and ease of use to streamline your car maintenance tasks. Drive efficiency and precision with the T-4H850 – the ultimate choice for serious car enthusiasts.
User Manual

*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

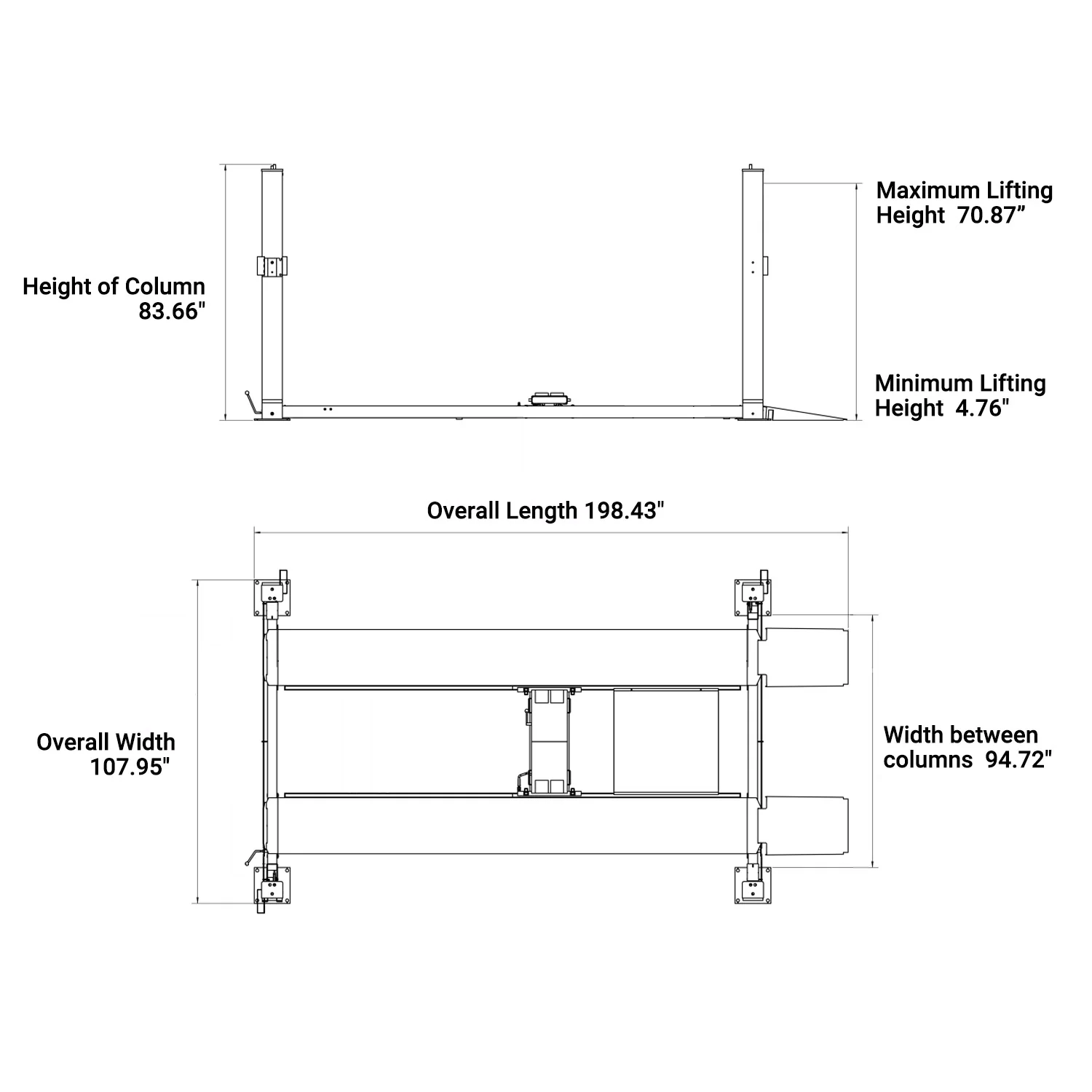

Specifications



Dimension(LxWxH)
Net weight	1820 lbs
Lifting Capacity	8500lbs/3850KG
Max. Lifting Height	70.87" / 1800mm
Lifting Time	75s Up / 40s Down
Height of Posts	83.66" / 2125mm
Width Overall	107.95" / 2742mm
Length Overall	198.43" / 5040mm (with Ramps)
Inside Columns	94.72" / 2406mm
Min. Runway Height	4.76" / 121mm
Motor	110VAC/60HZ/1PH

Feature

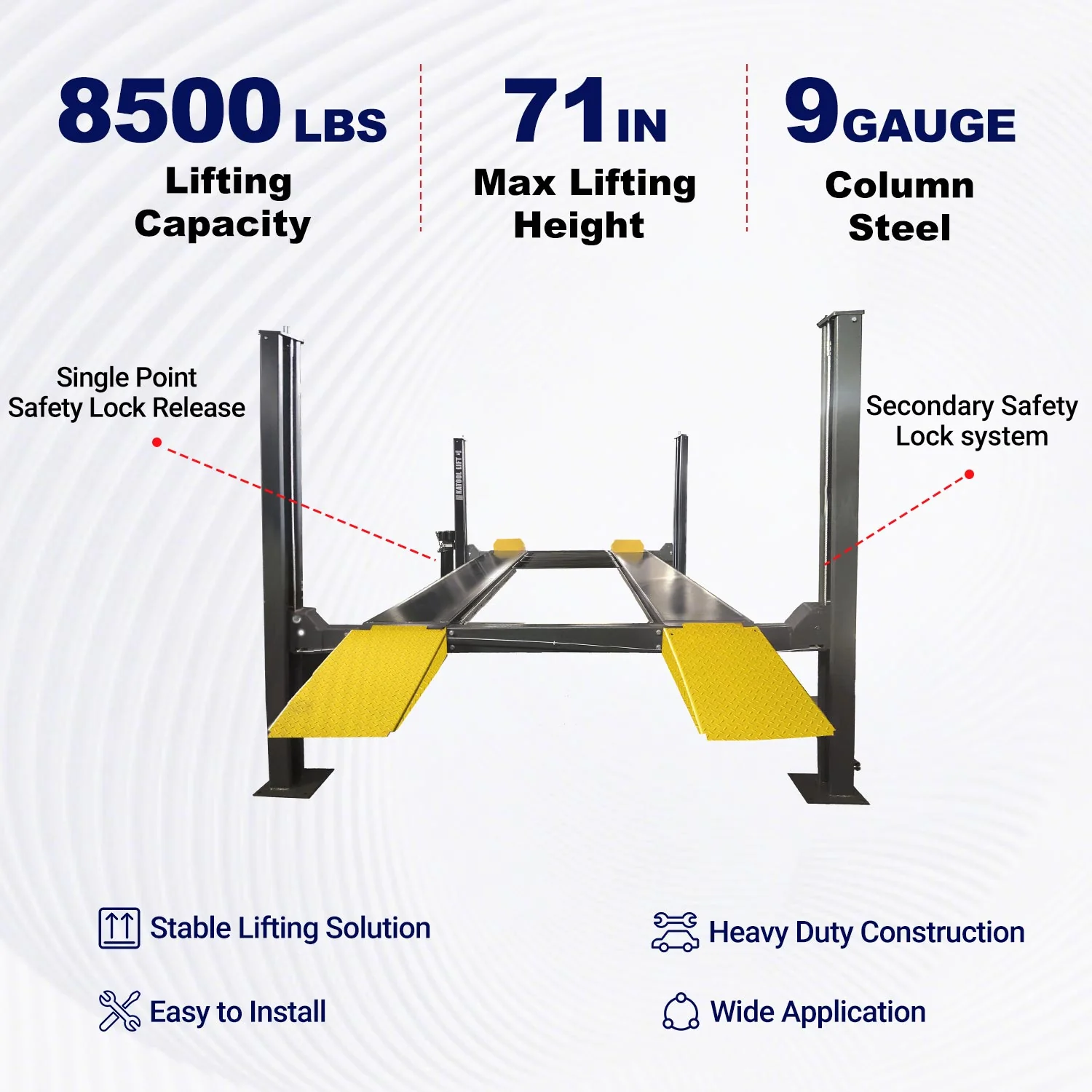

• 8500 lbs lifting capacity.
• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

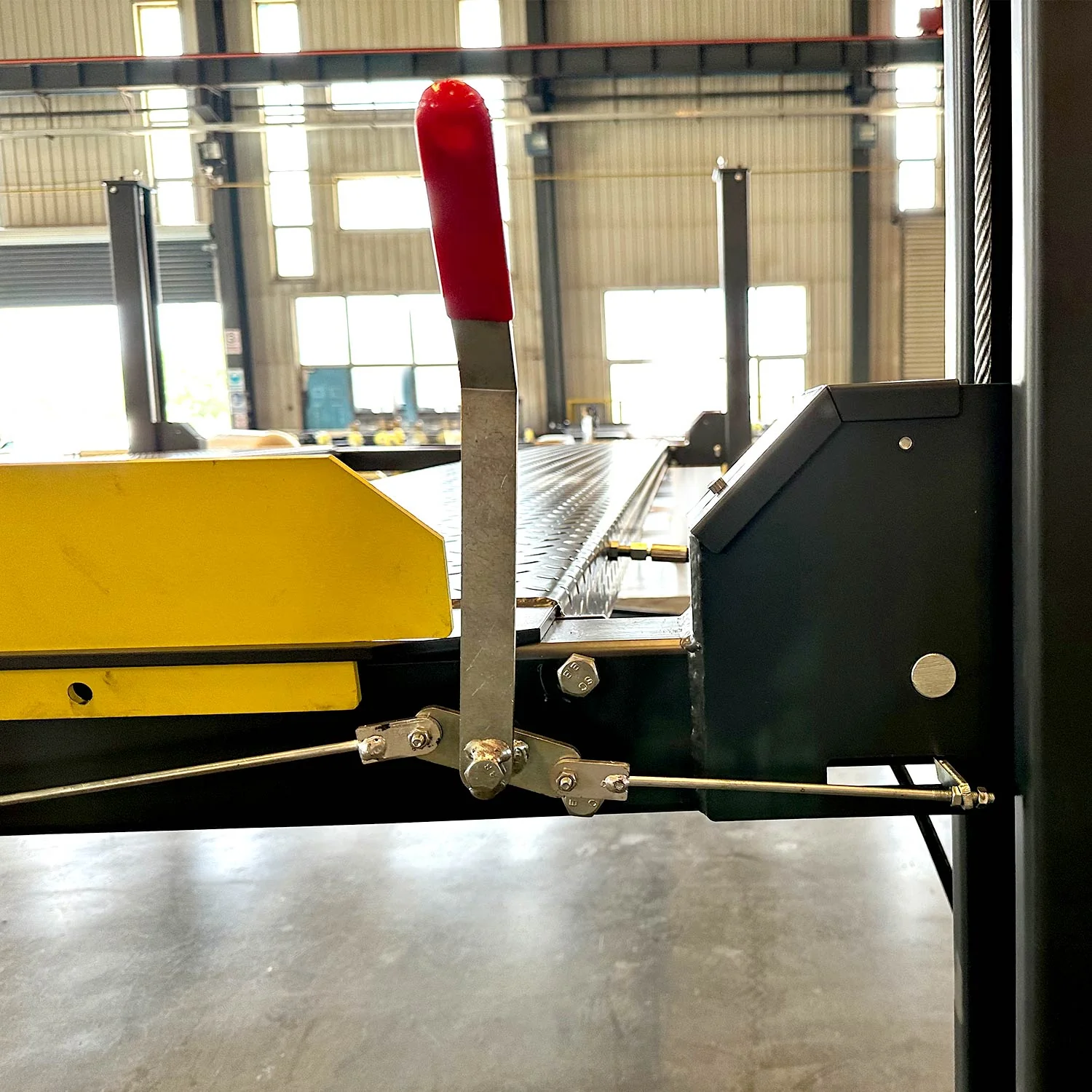

• Single Point Manual Safety Lock Release.

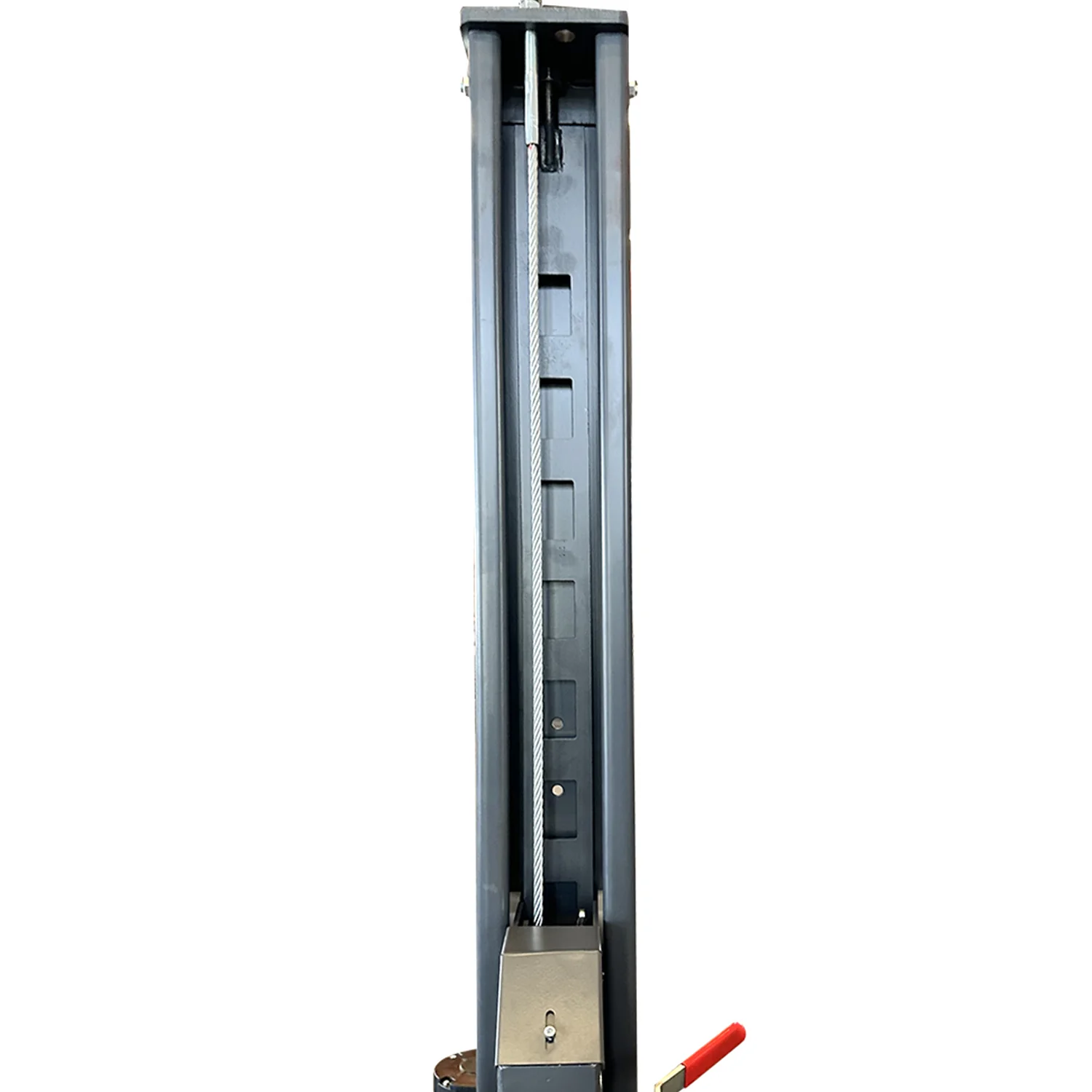

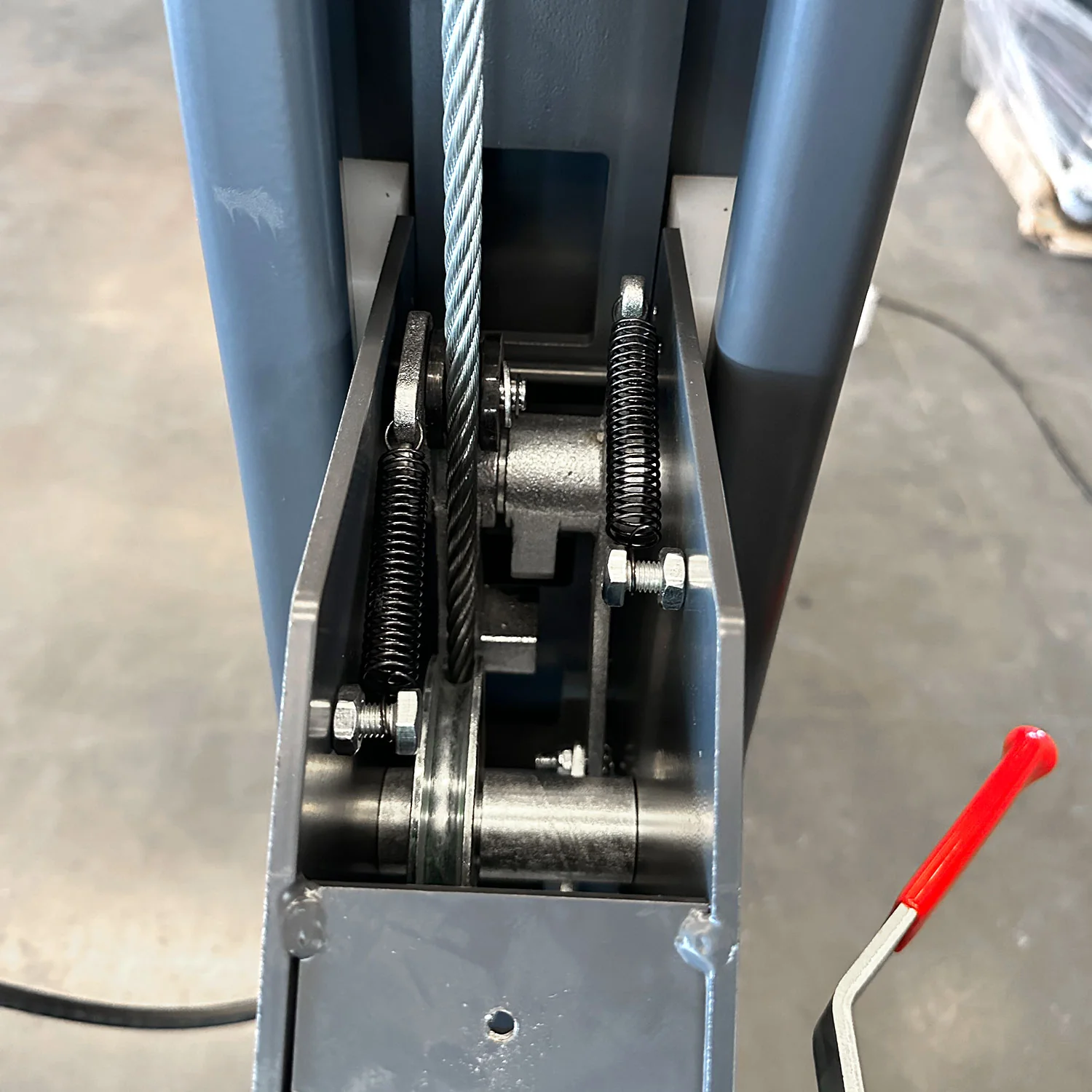

• Four mechanical locking devices, each equipped with both primary and secondary safety locks.
• Powerside column can be installed at both sides, front or rear.

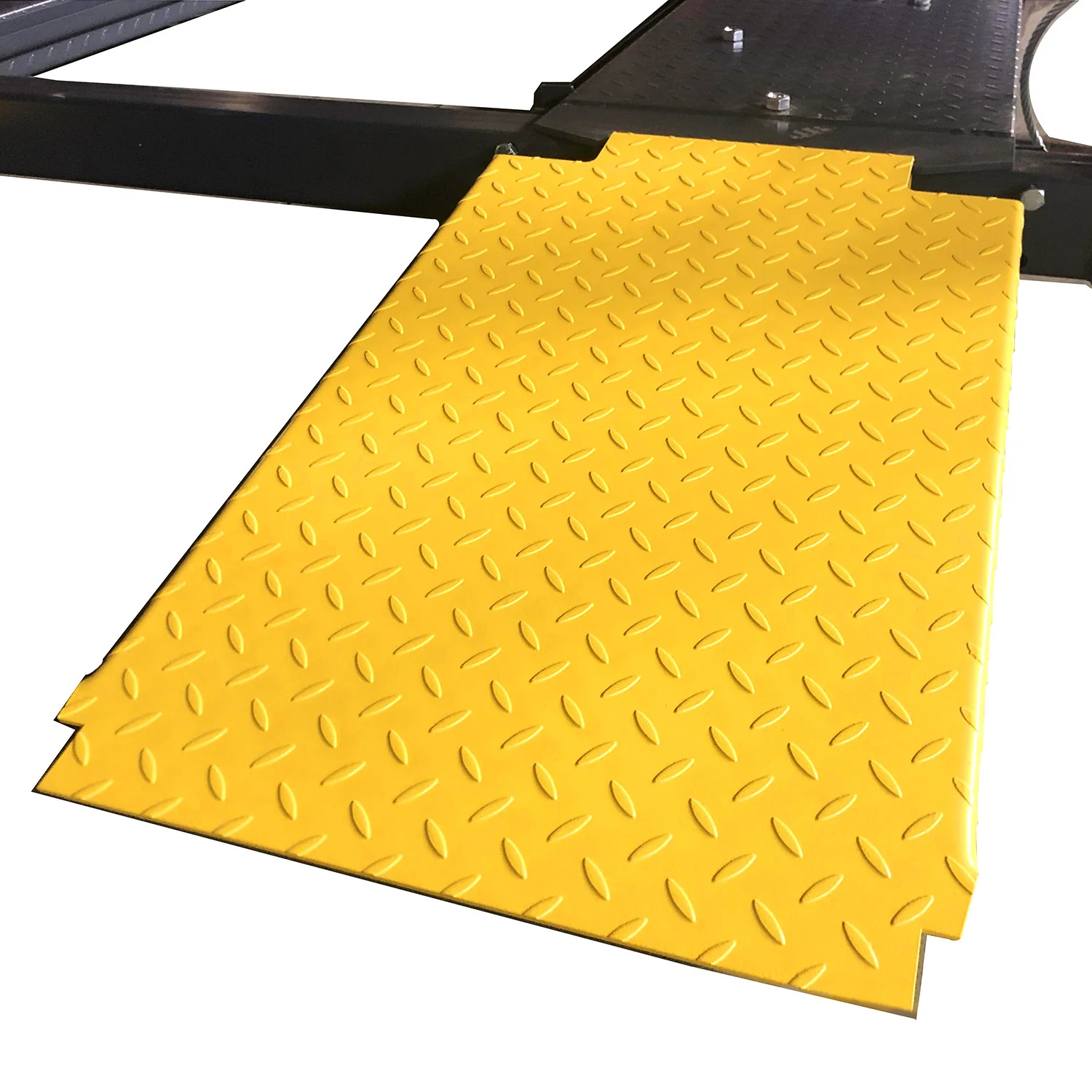

• Non-skid diamond platforms and adjustable safety lock ladders.

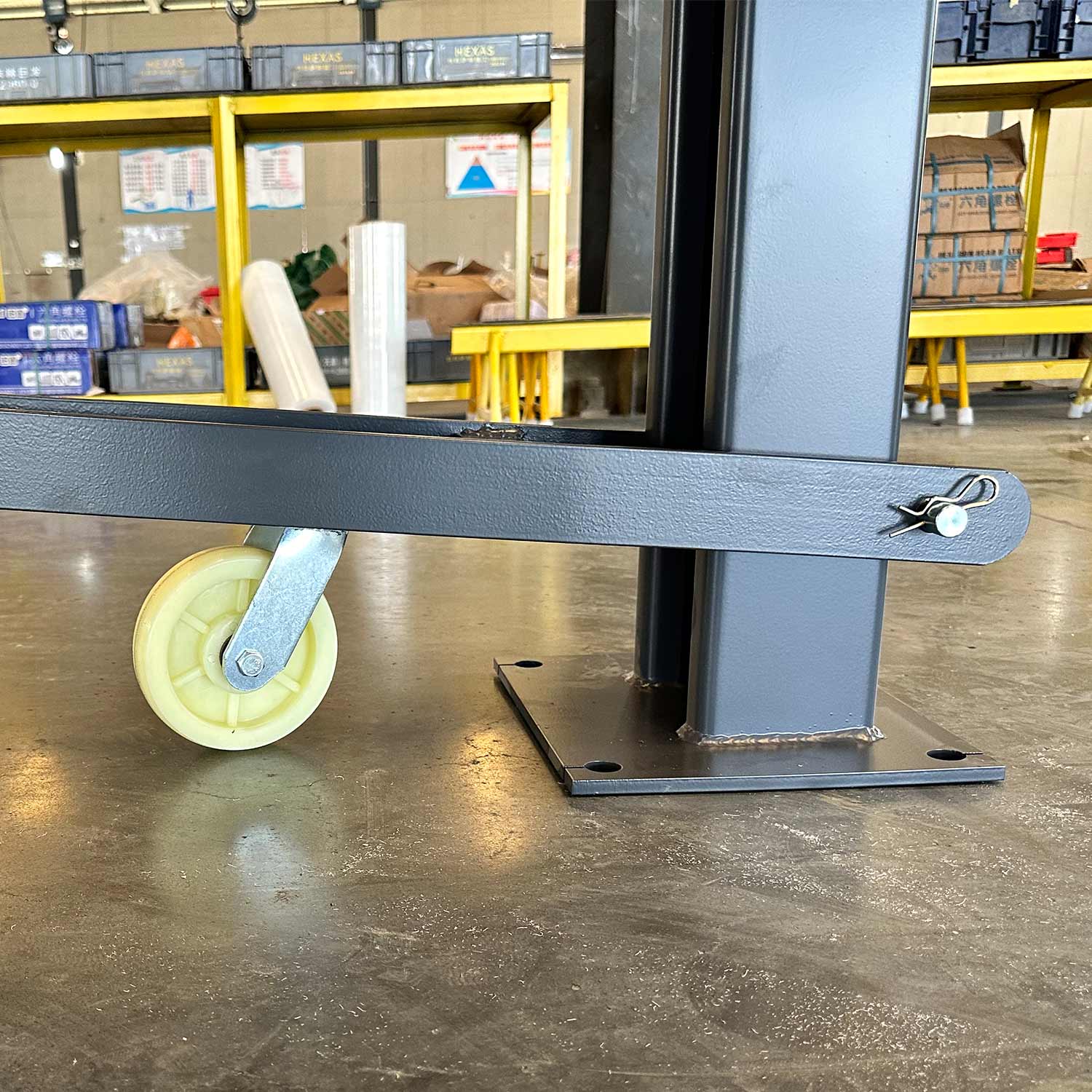

• Comes with a caster kit for moving the lift around.

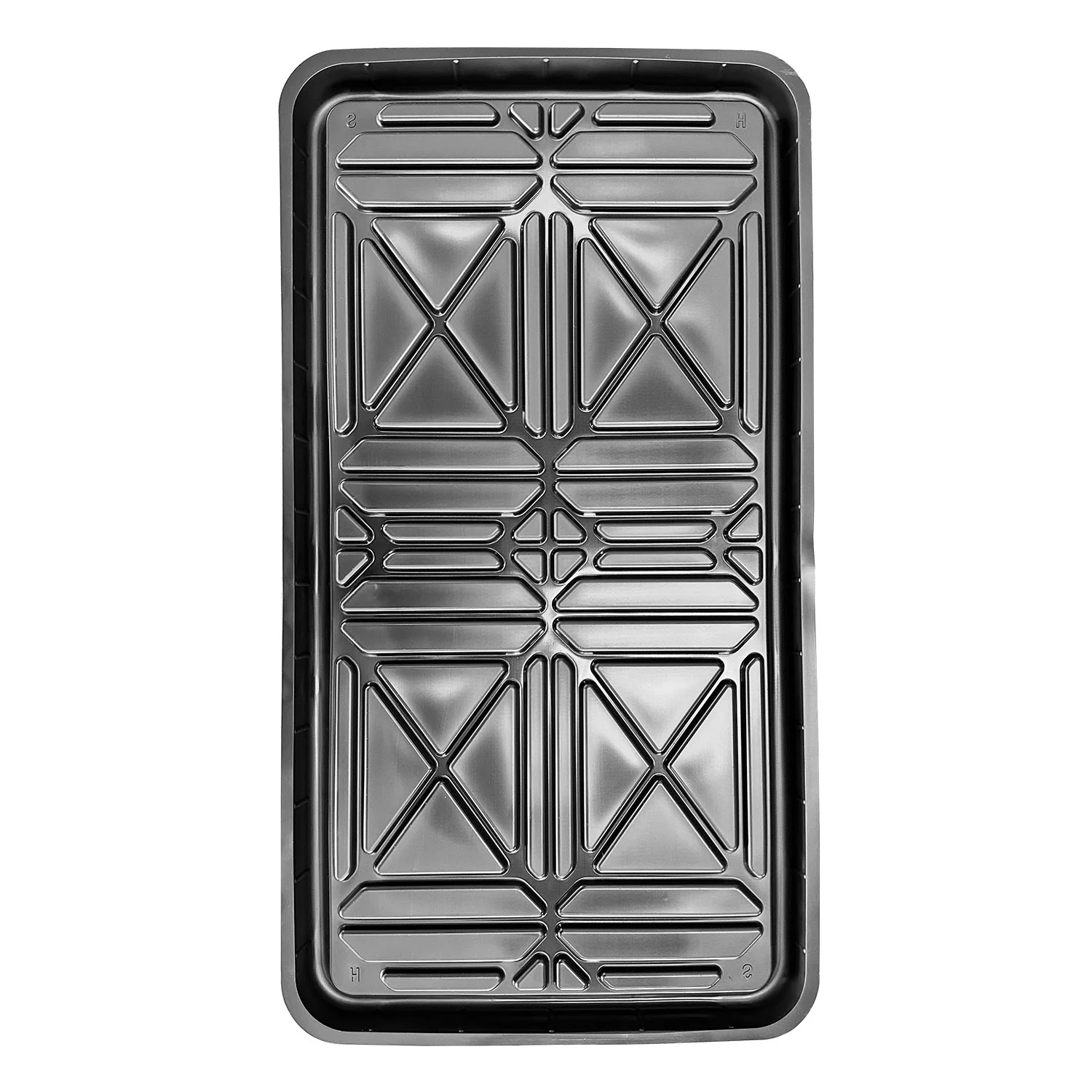

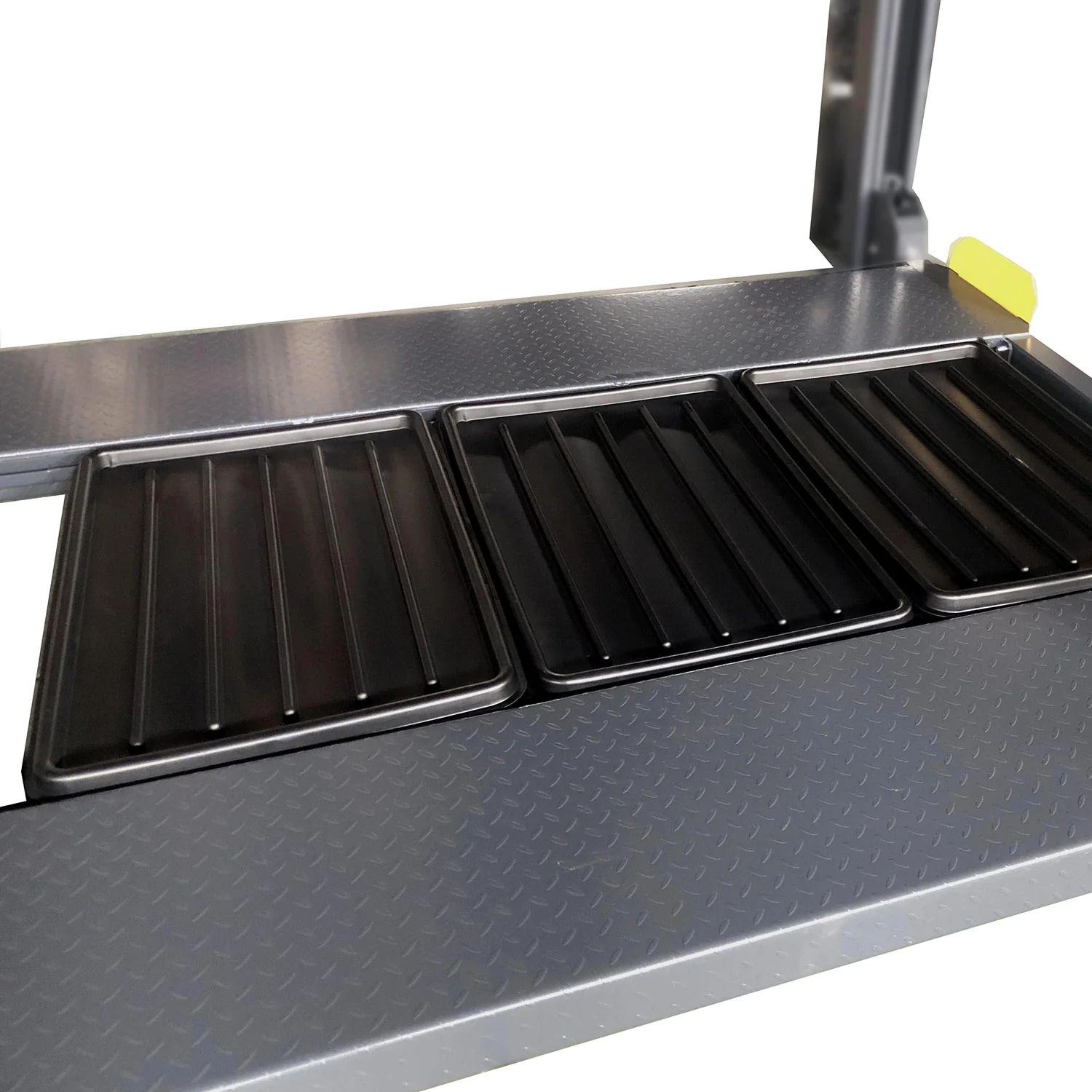

• Comes with two drip trays and a jack tray.

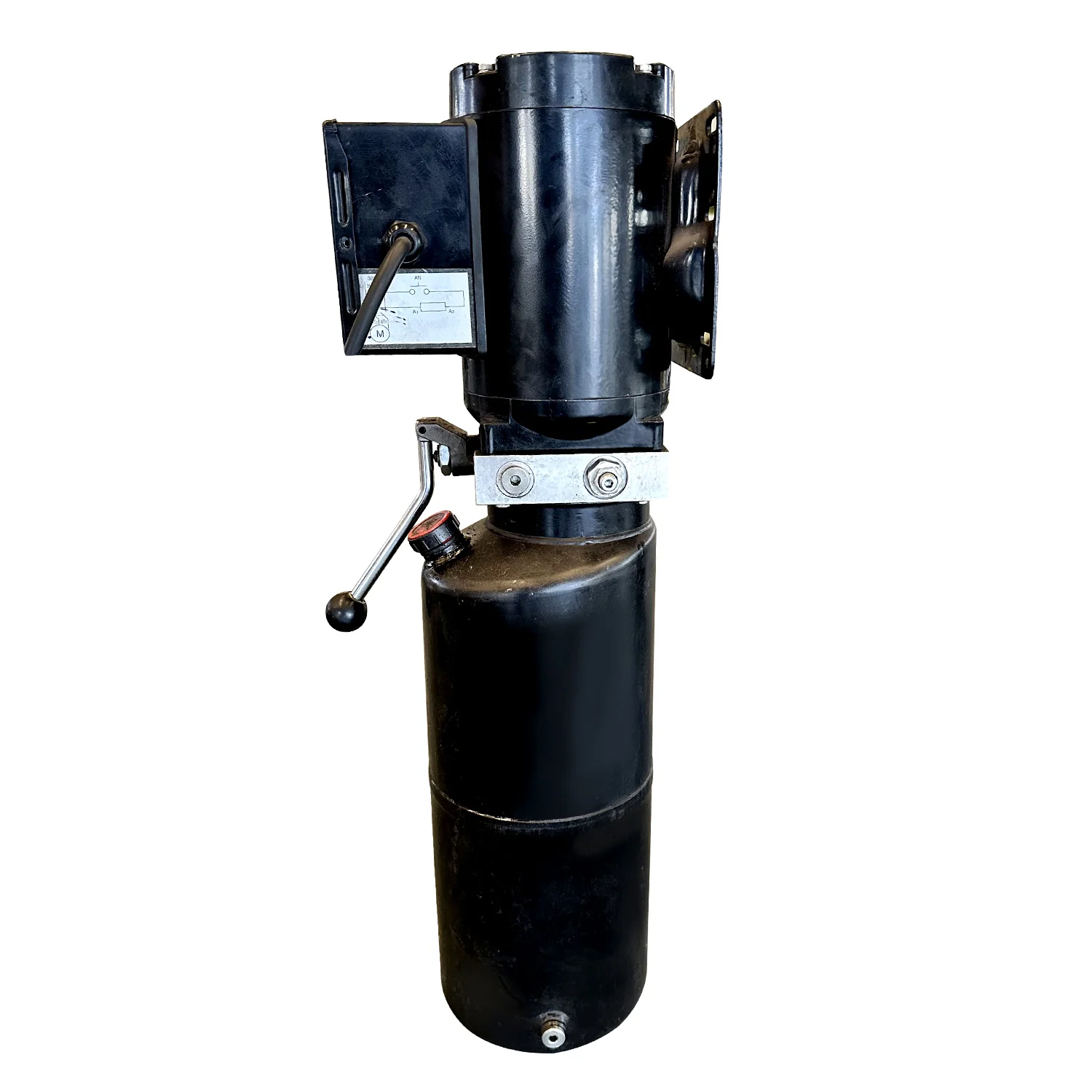

• High-quality hydraulic system with 110V/60HZ/1PH or 220V/60HZ/1PH (Optional).


Package Size

• LxWxH (inch): 167x23x30

• Weight (lb): 1820

• We don't provide unloading services, please ensure a forklift or equivalent equipment is available for unloading.
