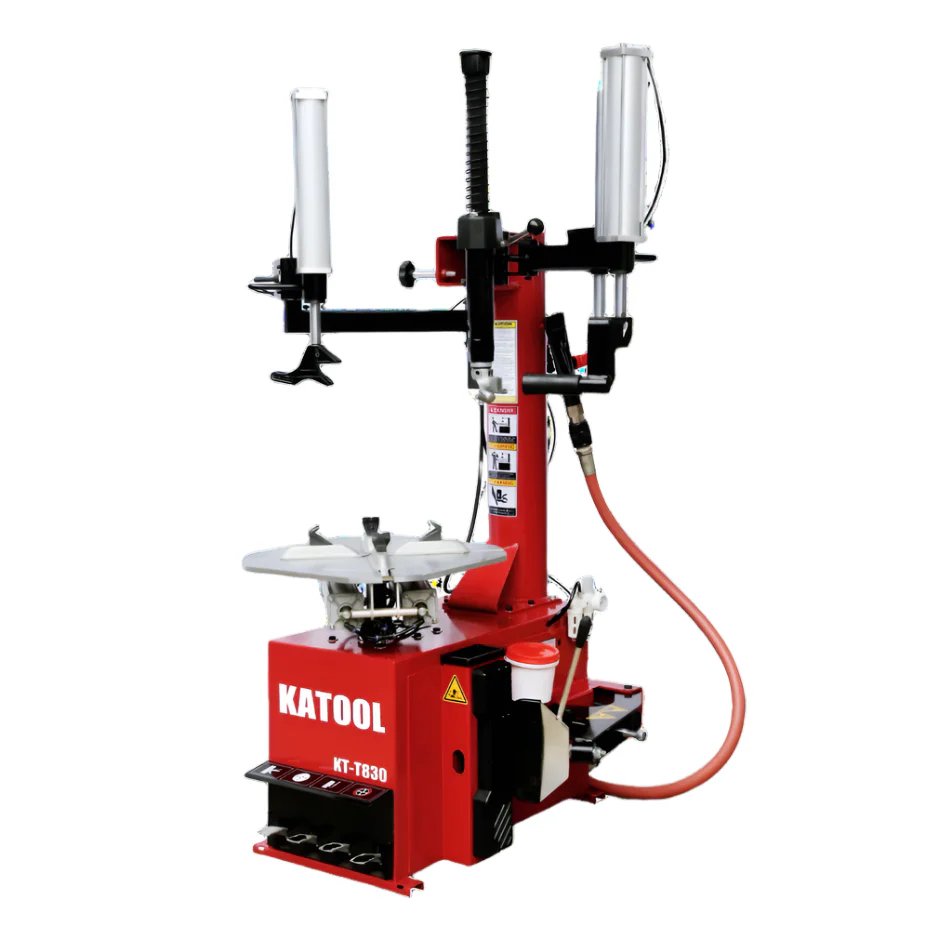

Equipped with state-of-the-art technology, this tire changer ensures seamless operation for various tire sizes. The tool's compact design is tailored specifically for home use, making it a must-have for DIY enthusiasts and home mechanics alike. The convenience of a motorized system coupled with the reliability of the KT-T830 transforms tire changes into a straightforward and enjoyable task.
User Manual

Specifications

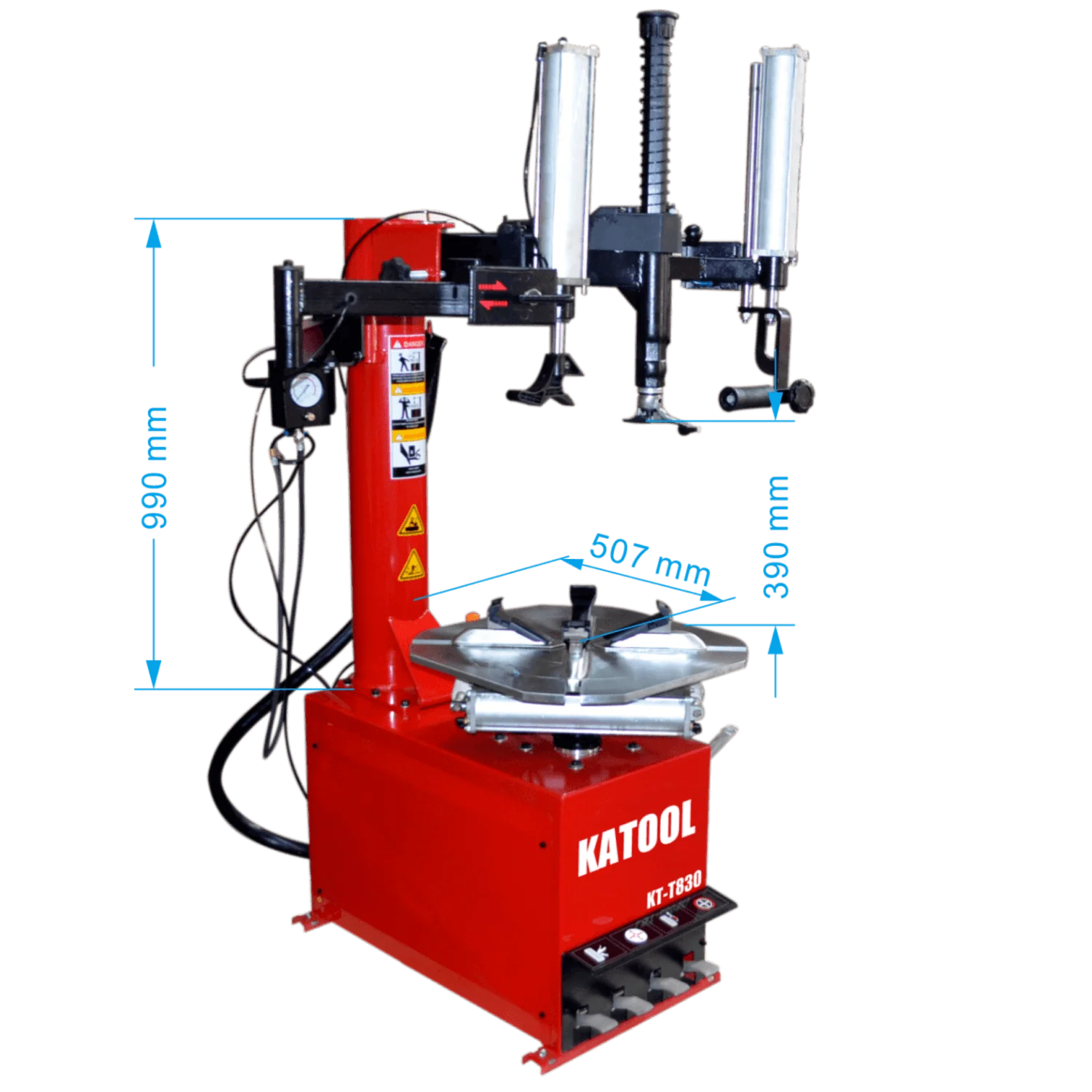

Dimension(LxWxH)
Net weight	529 lbs
Max Wheel Diameter	41"/1040mm
Max Wheel Width	15"/380mm
Outside Clamp	12"-22"
Inside Clamp	14"-24"
Power Supply	120V 1PH
Motor Power	2.0HP/1.5KW
Rotation Speed	6.8r/min
Air Pressure	0.8-1.0Mpa(116-145psi)

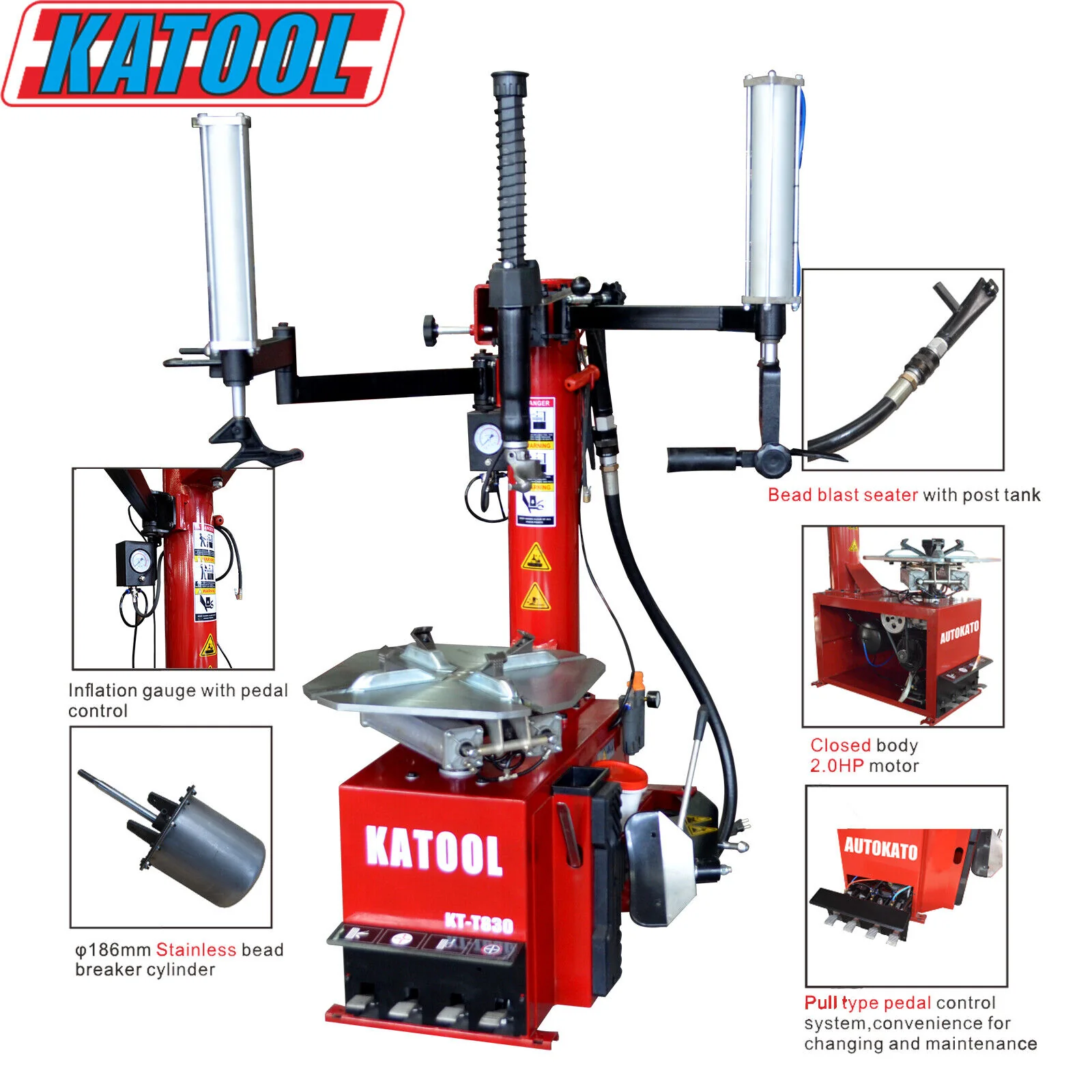

Feature

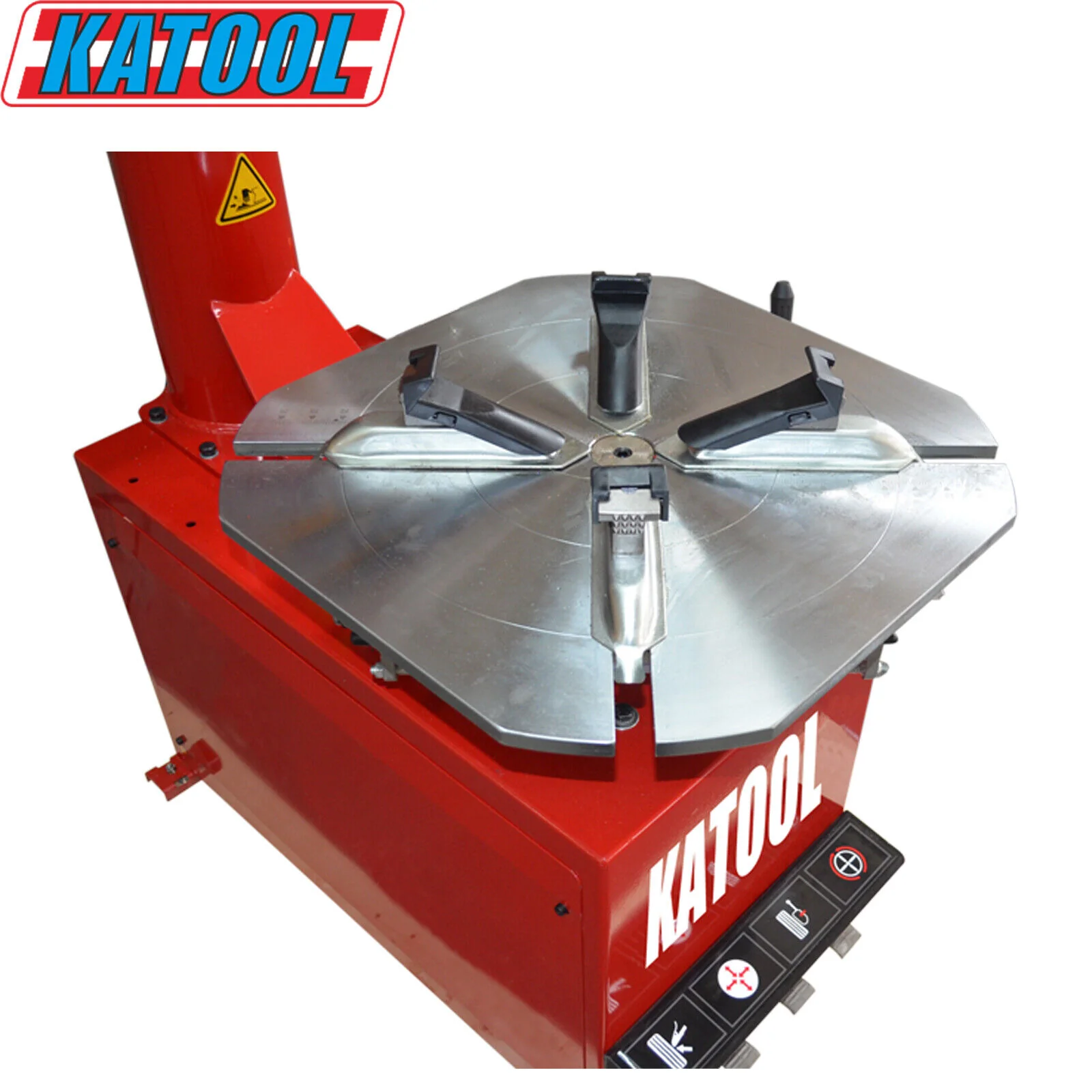

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw have more tenacity and the outside harder, and use the jaw cover for protecting the rim.
• The mounting head is made of stainless steel with solution treatment and interface polishing, the shape conforms to the engineering. mechanics and accompanied by a plastic cover to protect the rim

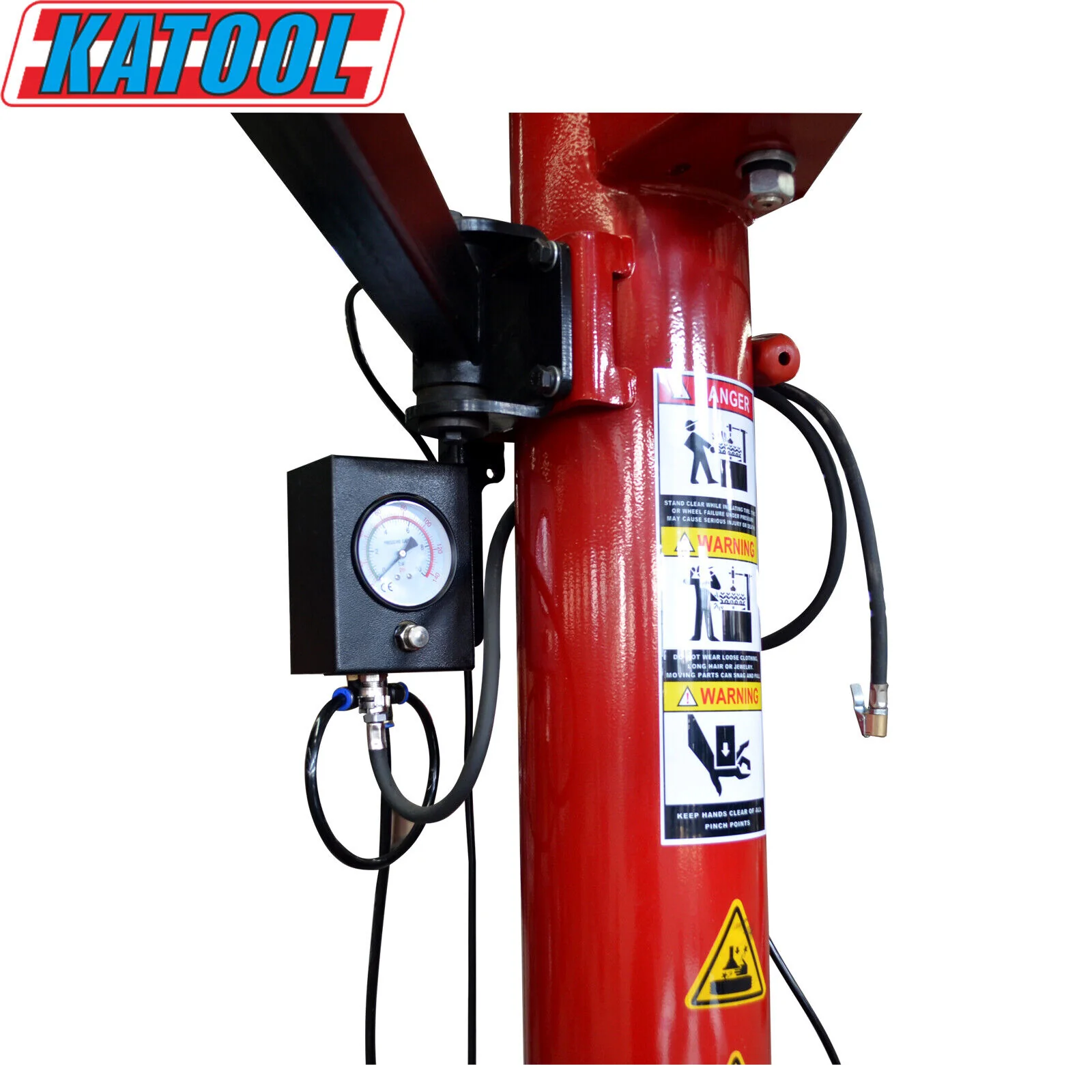

• Inflation gauge with pedal control.
• The high-quality spade cover effectively prevents the rim from being damaged.
• Pull-type pedal control system, easy for tire changing and maintenance
• Top-level motor and pure copper winding provide more power, faster heat dissipation, lower defect rate, and longer service life.
• The high-quality lubricator provides reliable oil drops and effectively filters compressed air so that the service life of the pneumatic system is extended.
• For the North American region, it supports 110V/1ph/2.0HP motors for the strongest power and better efficiency.

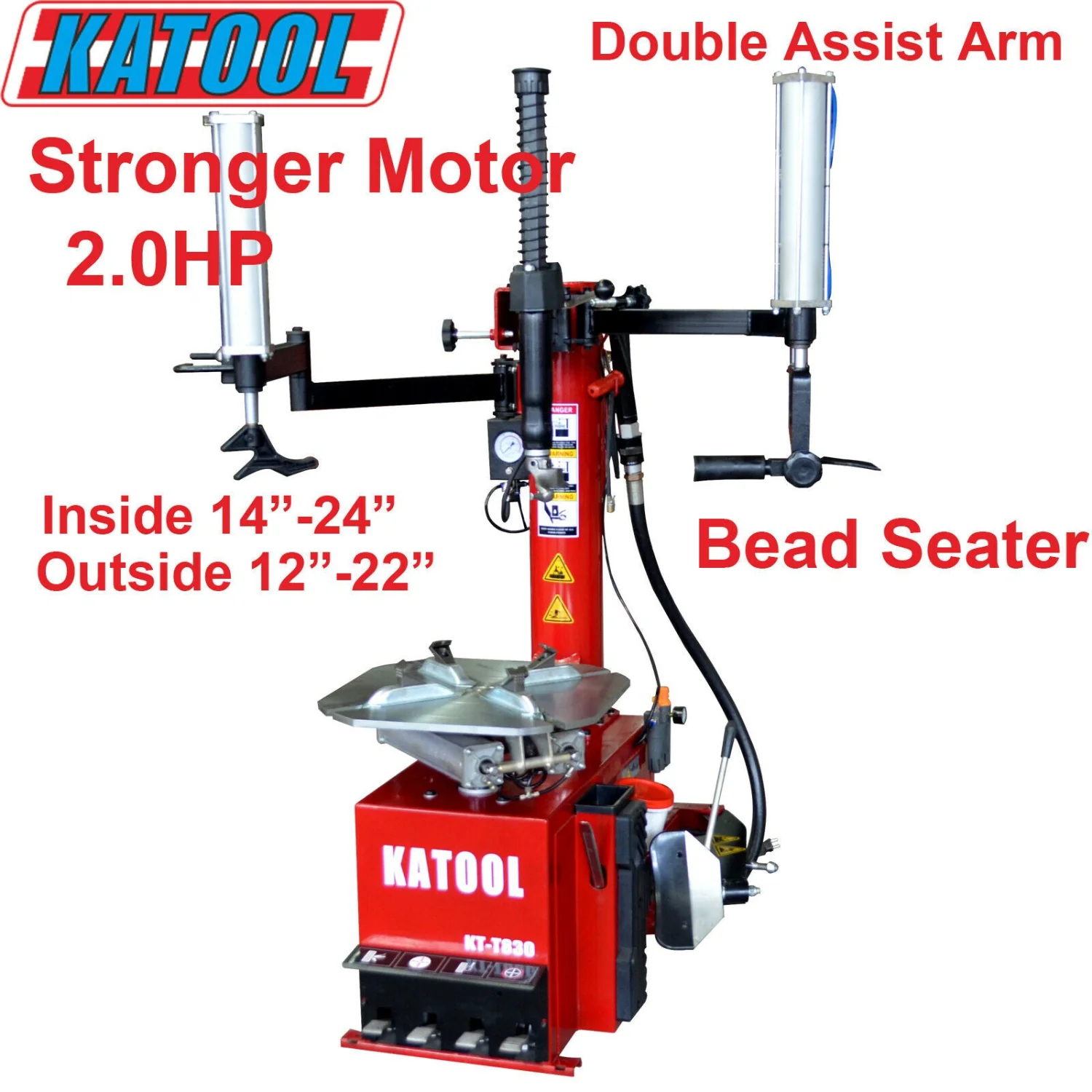

• Double side assist arm.
• Bead blast seater head with post tank.
• 186mm / 7.32" stainless bead breaker cylinder.

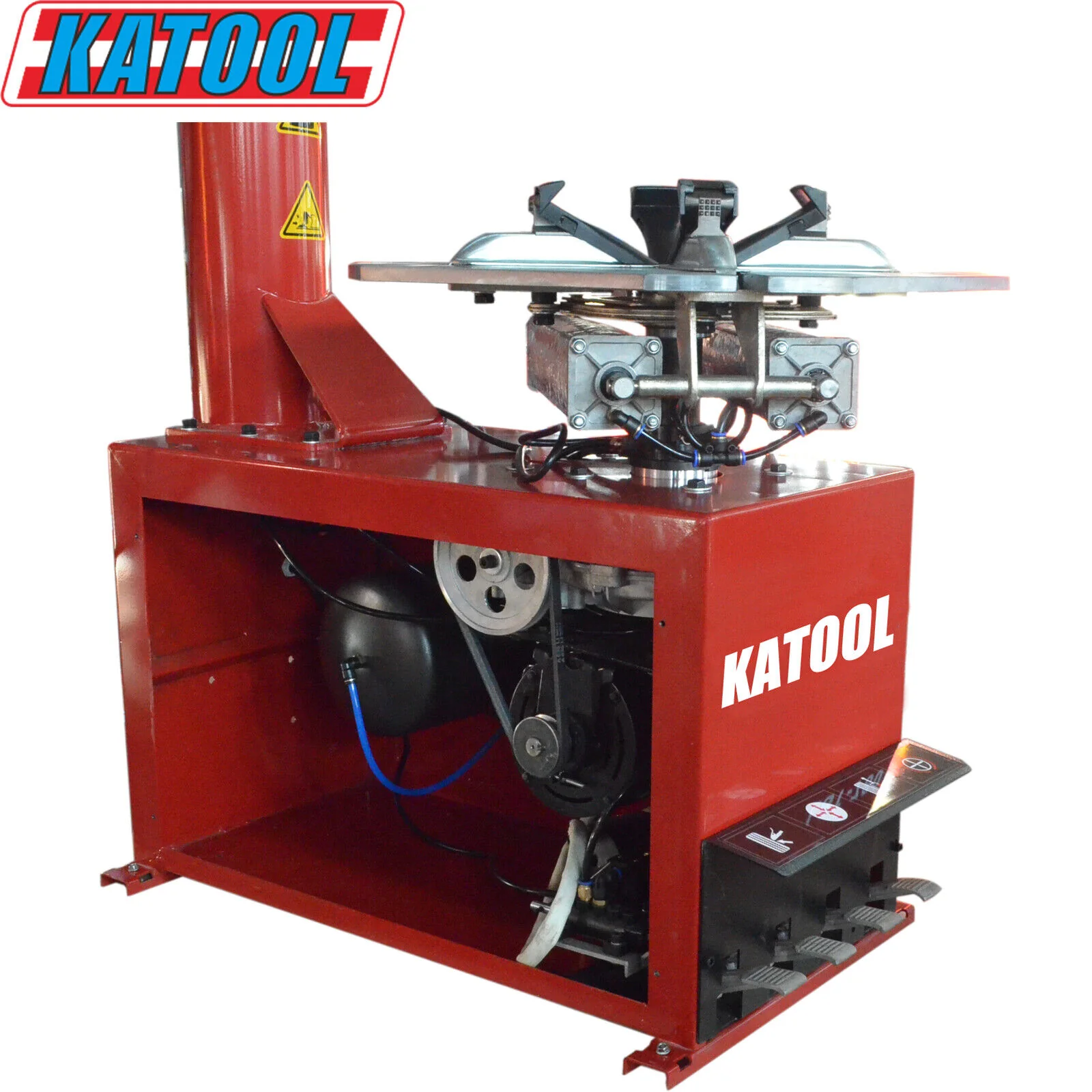

• Closed body for the protection of the parts inside.

Package Size

• LxWxH (inch):
• Weight (lb):
• A forklift or equivalent is required for unloading
