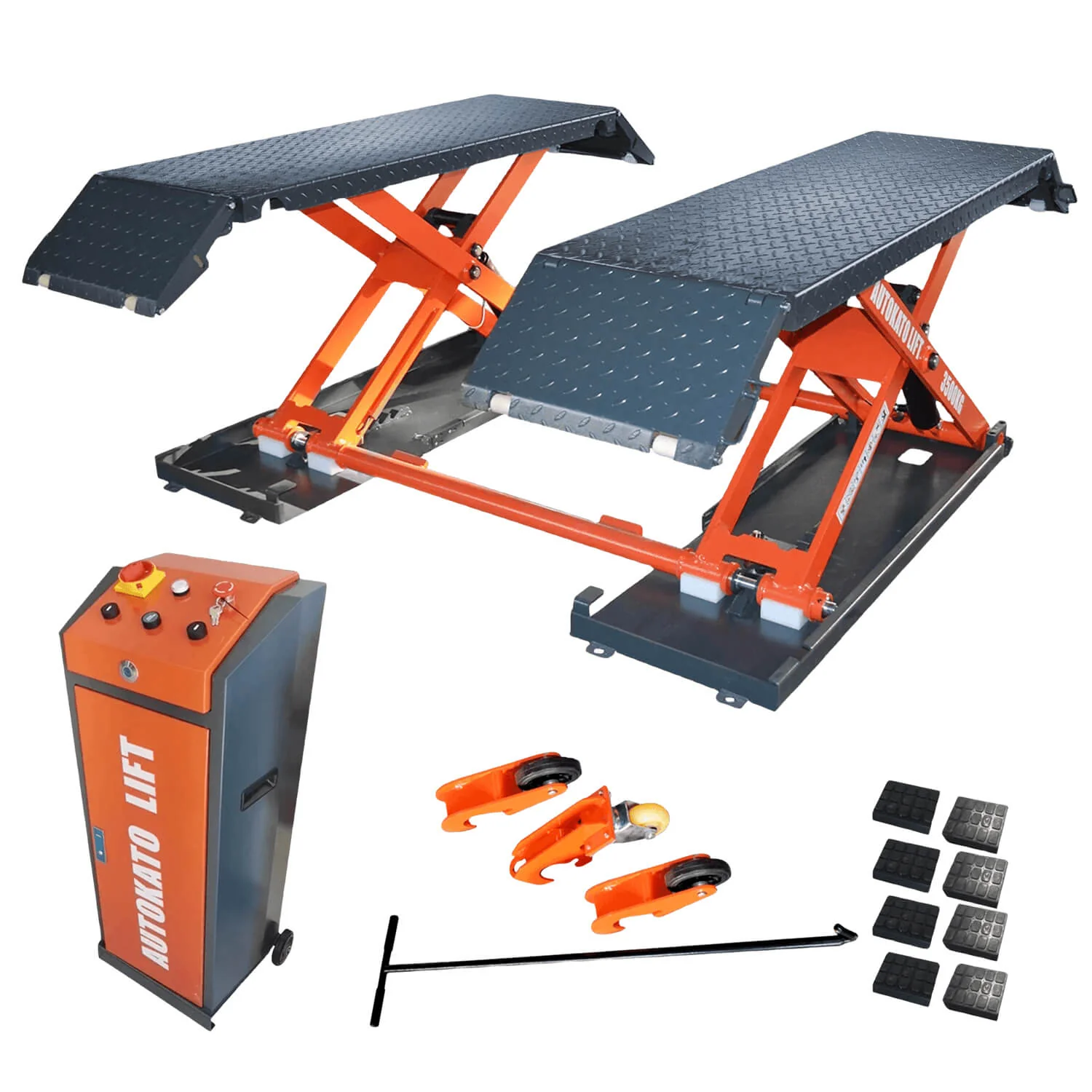

Unlock unparalleled versatility with the KT-X85 Mid-Rise Scissor Lift, now available in two voltage variations – choose the power that suits your garage, 110V or 220V. Elevate your automotive maintenance game with this compact powerhouse, offering effortless lifting for tire changes, brake repairs, and more. The electric precision release ensures controlled elevation, while the dual voltage options cater to diverse workspace requirements. Whether you're a dedicated DIY enthusiast or a professional mechanic, the KT-X85 delivers reliability and adaptability in one dynamic package. Upgrade your lifting experience and enjoy the freedom to choose with the KT-X85 Mid-Rise Scissor Lift – where power meets precision.
User Manual

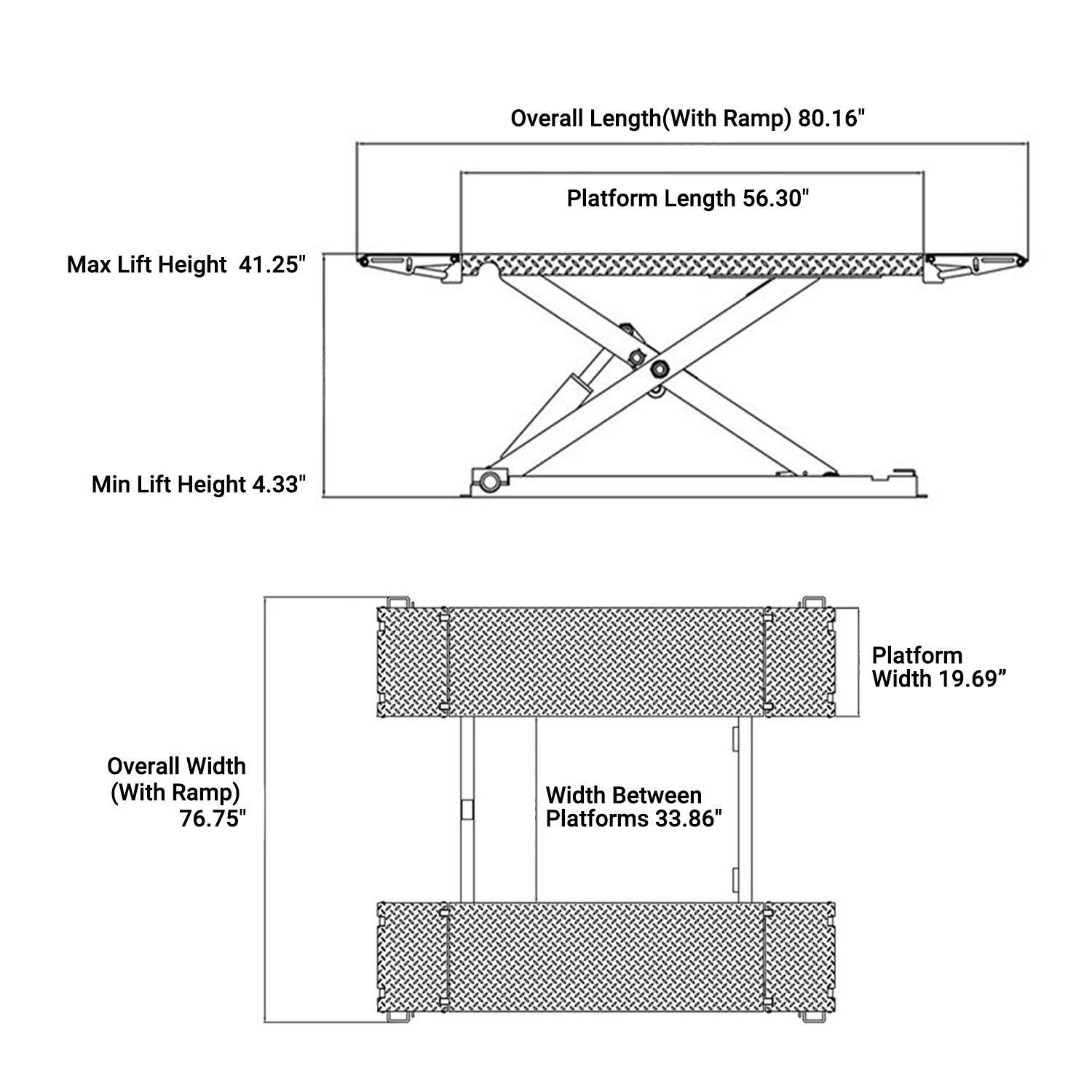

Specifications



Dimension(LxWxH)
Net weight	1213 lbs
Lifting Capacity	8000lbs/3500KG
Max. Lifting Height	40.15"/1020mm
Min. Height	4.25"/110mm
Length Overall	83.5"/2120mm
Width Overall	76.75"/1950mm
Platform Length	57"/1450mm
Platform Width	20.5"/520mm
Motor	110 (220)VAC/60HZ/1PH

Feature

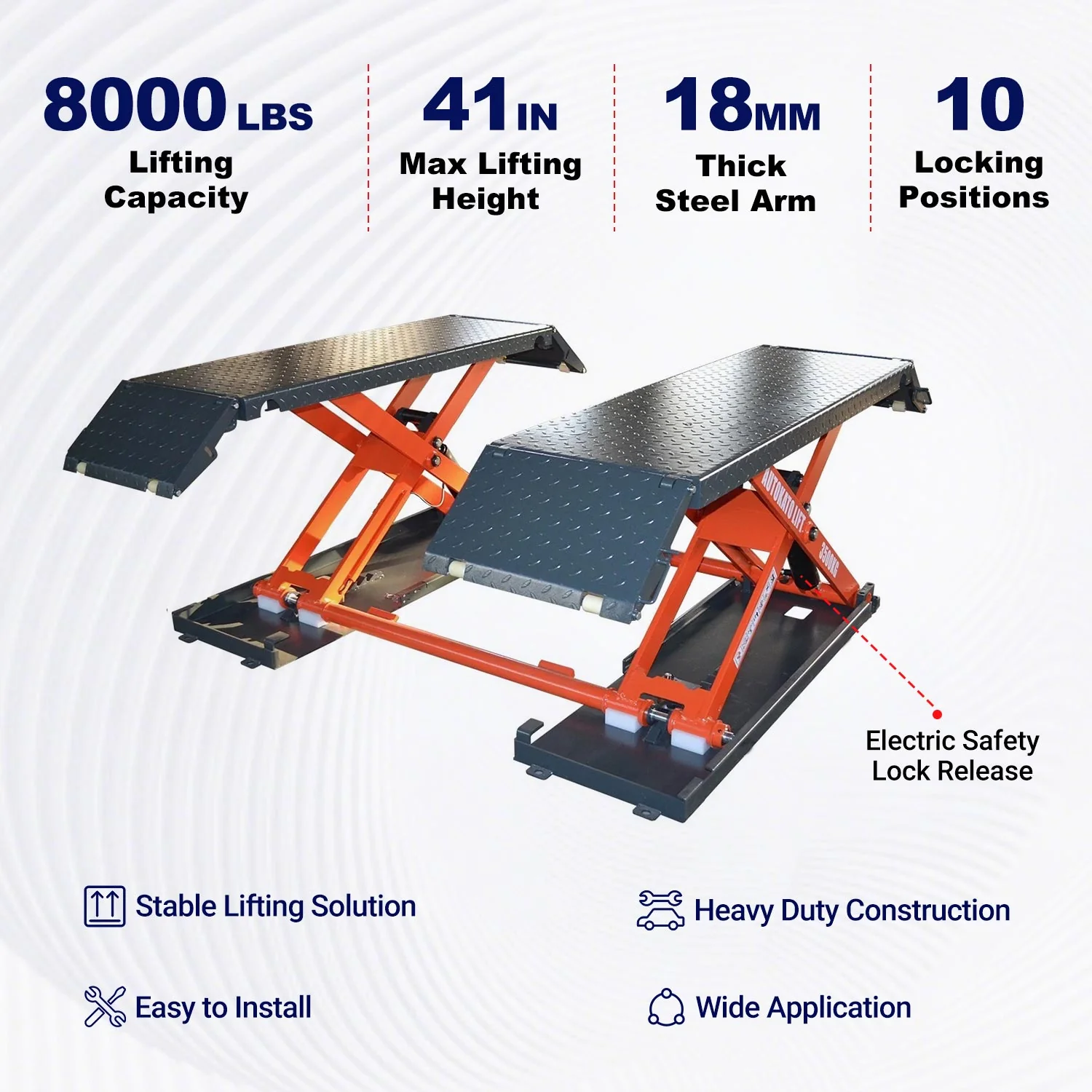

• 8000lbs(3500KG) lifting capacity.
• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
• Mobile or fixed mount design.
• Starting-up system design.

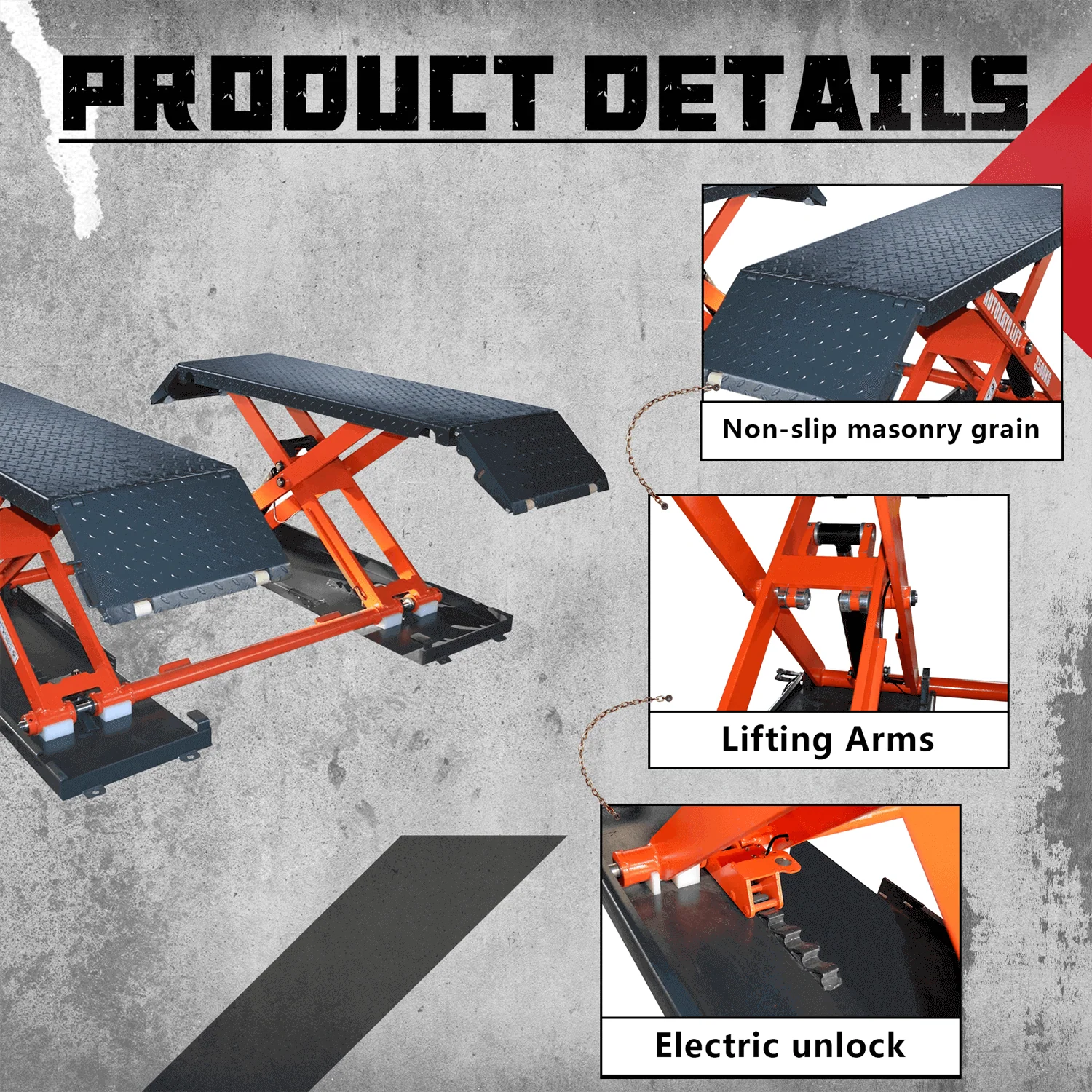

• Electric safety release.
• 24V safe control system.
• Height limit switch.
• Composite rubber lifting blocks included.
• Comes with self-lubricated bushing and bearing.
• Drive-up ramps lock design as platform extension for long vehicles.
• A portable, mobile kit is included to make the lift moves in your garage easily.
• Top-level hydraulic system and aluminum motor with fan on top to avoid overheating caused by long time working with 110 (220V)V/ 60HZ/ 1PH.


Package Size

• LxWxH (inch):
  Box A: 78x64x10;
  Box B: 43x23x18.
• Weight (lb):
  Box A: 1184;
  Box B: 200.
• A forklift or equivalent is required for unloading
