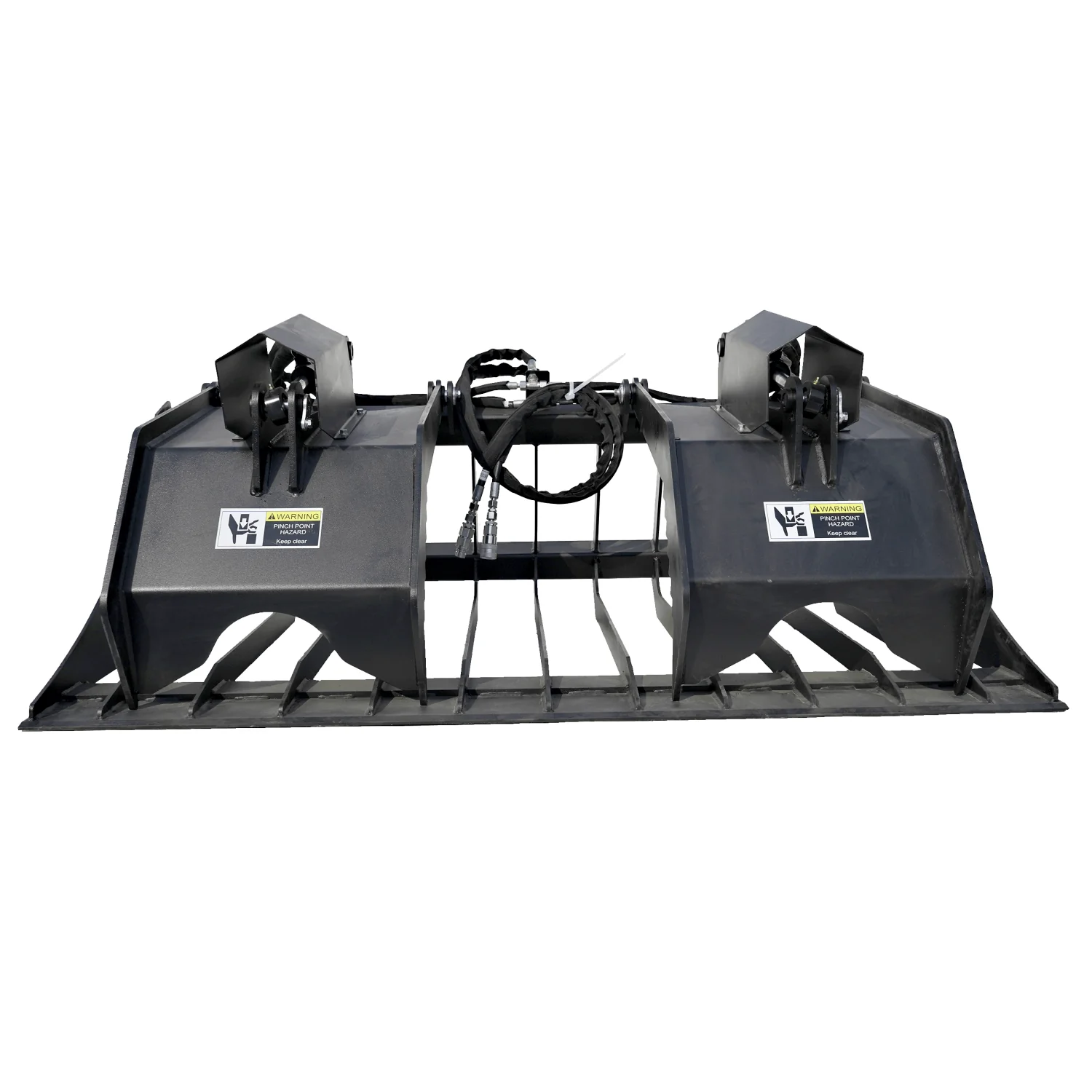

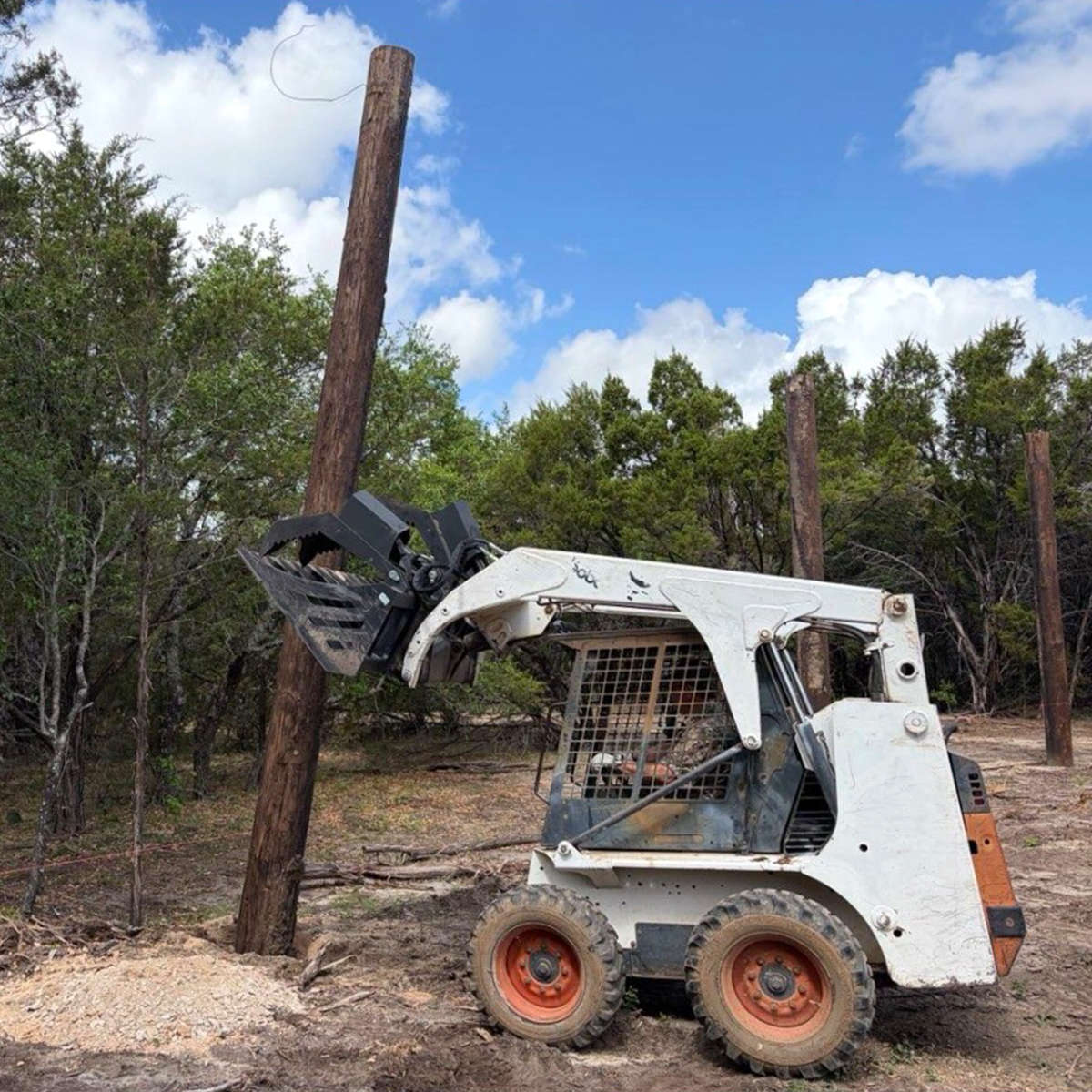

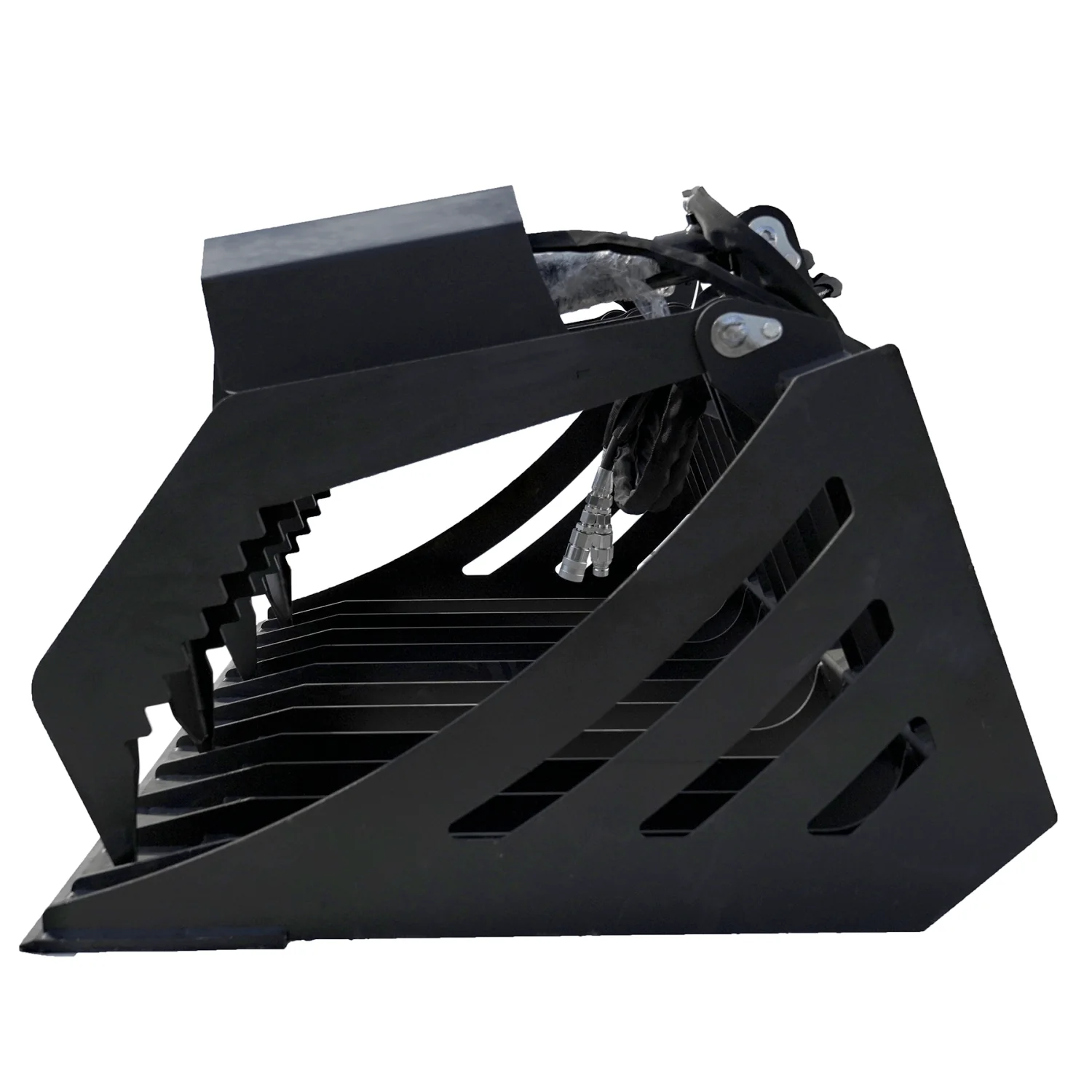

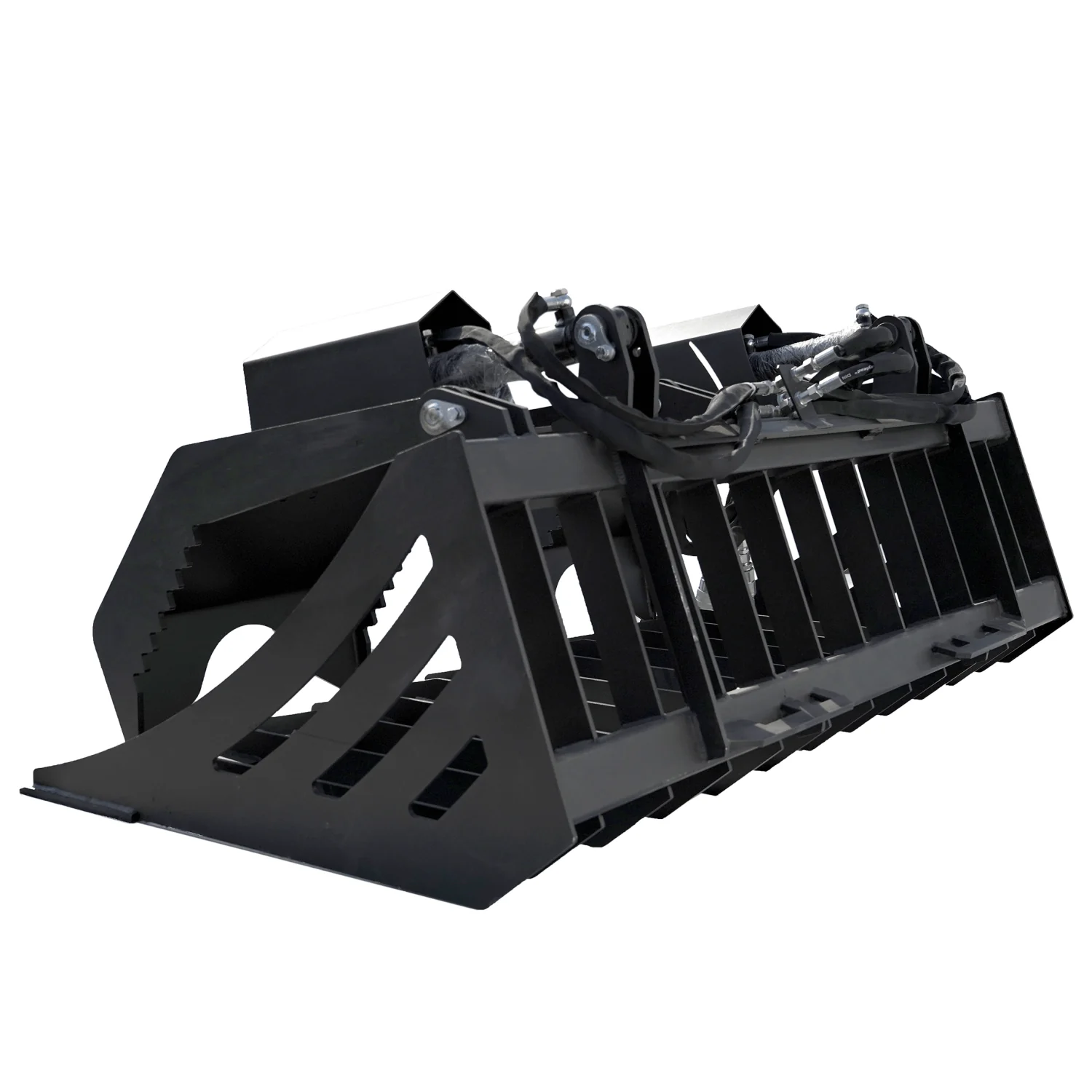

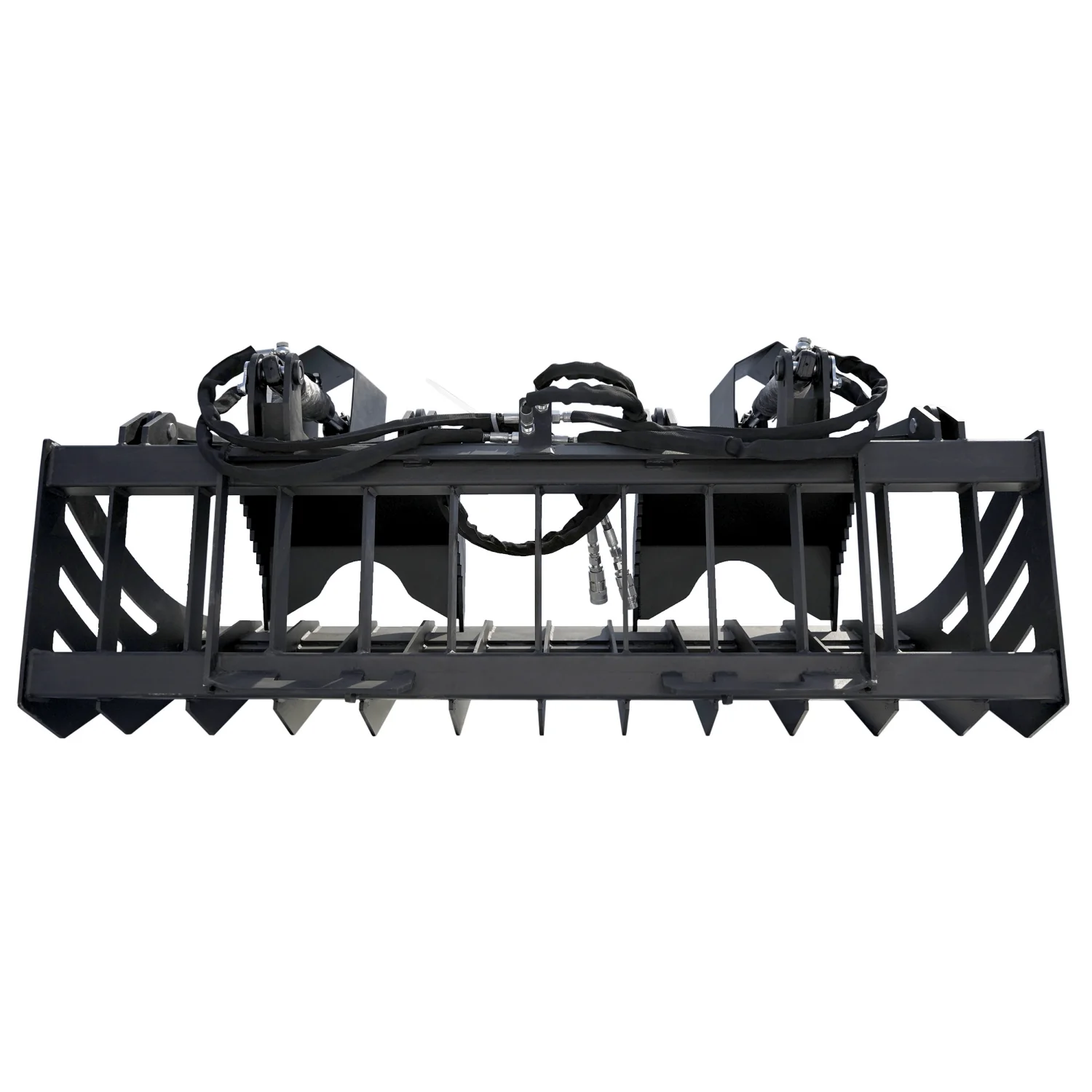

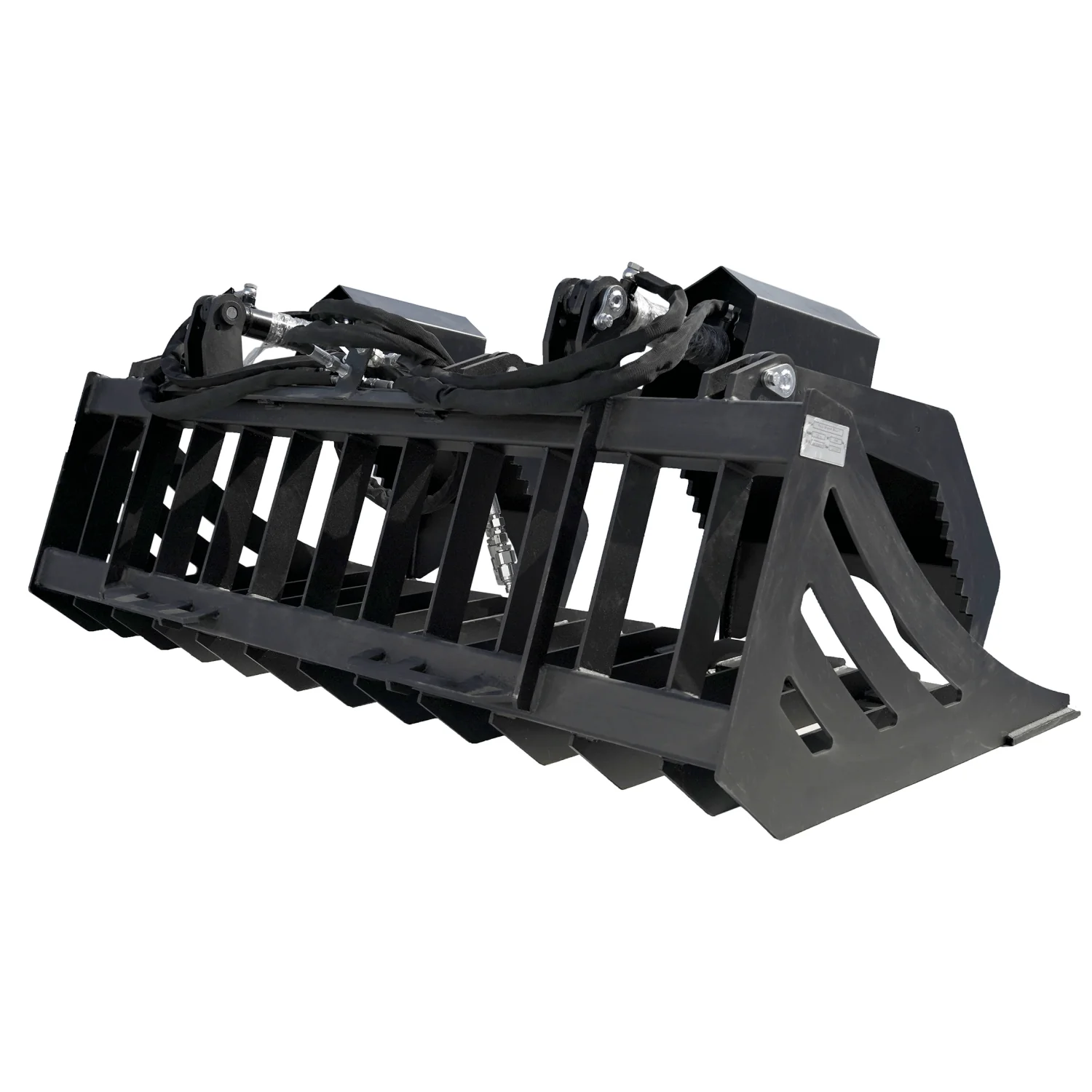

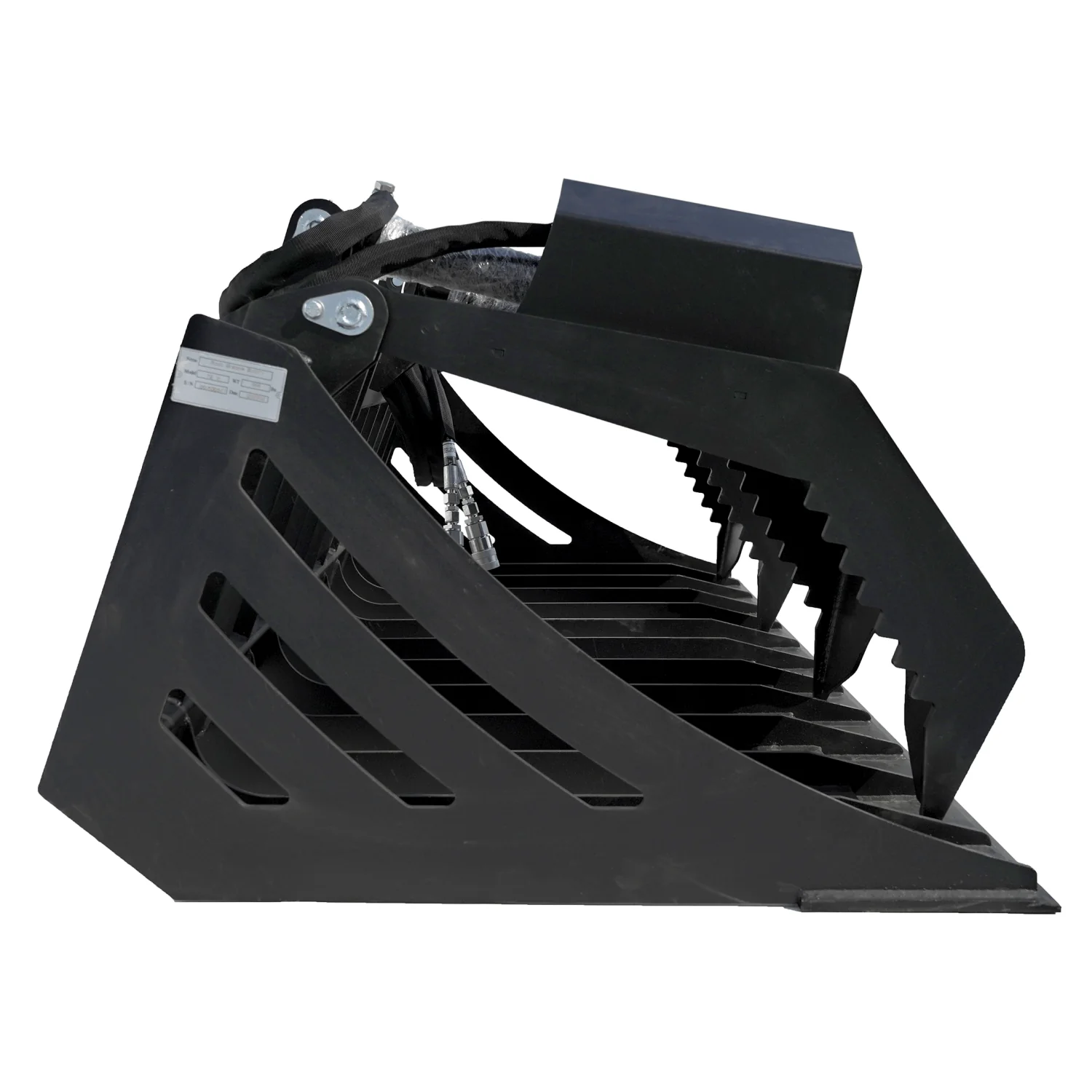

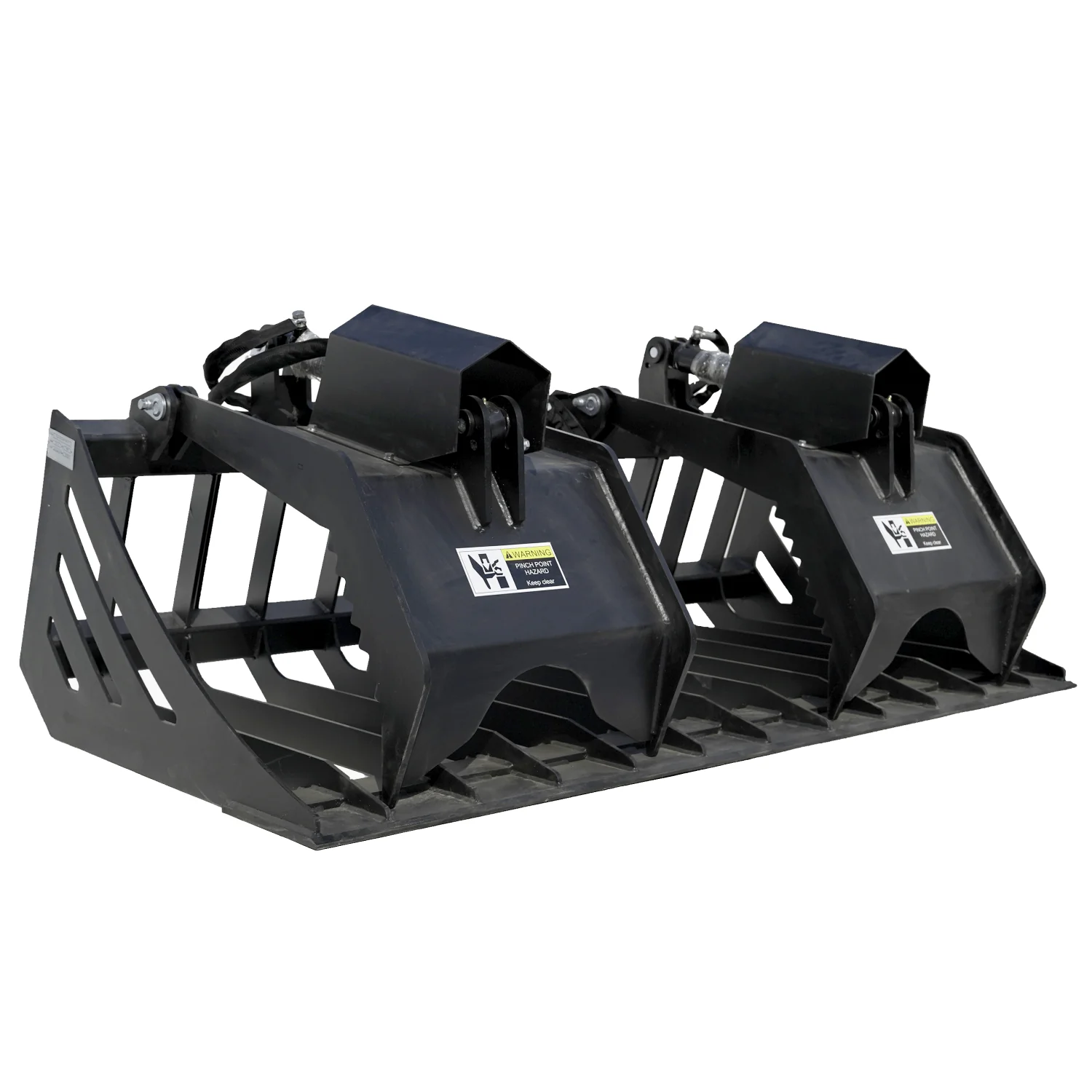

This Greatbear rock grapple bucket with tines is designed to sift or rake material on your job site. The gap between tines allows the loose soil off the bucket and keeps the bigger rocks inside, so you can move the rocks aside. The easiest and cleanest way to clear rock on your construction site is to use this Greatbear rock grapple bucket. This attachment can easily rip into the earth and lift, filtering out the soil and retaining the rock.

User Manual

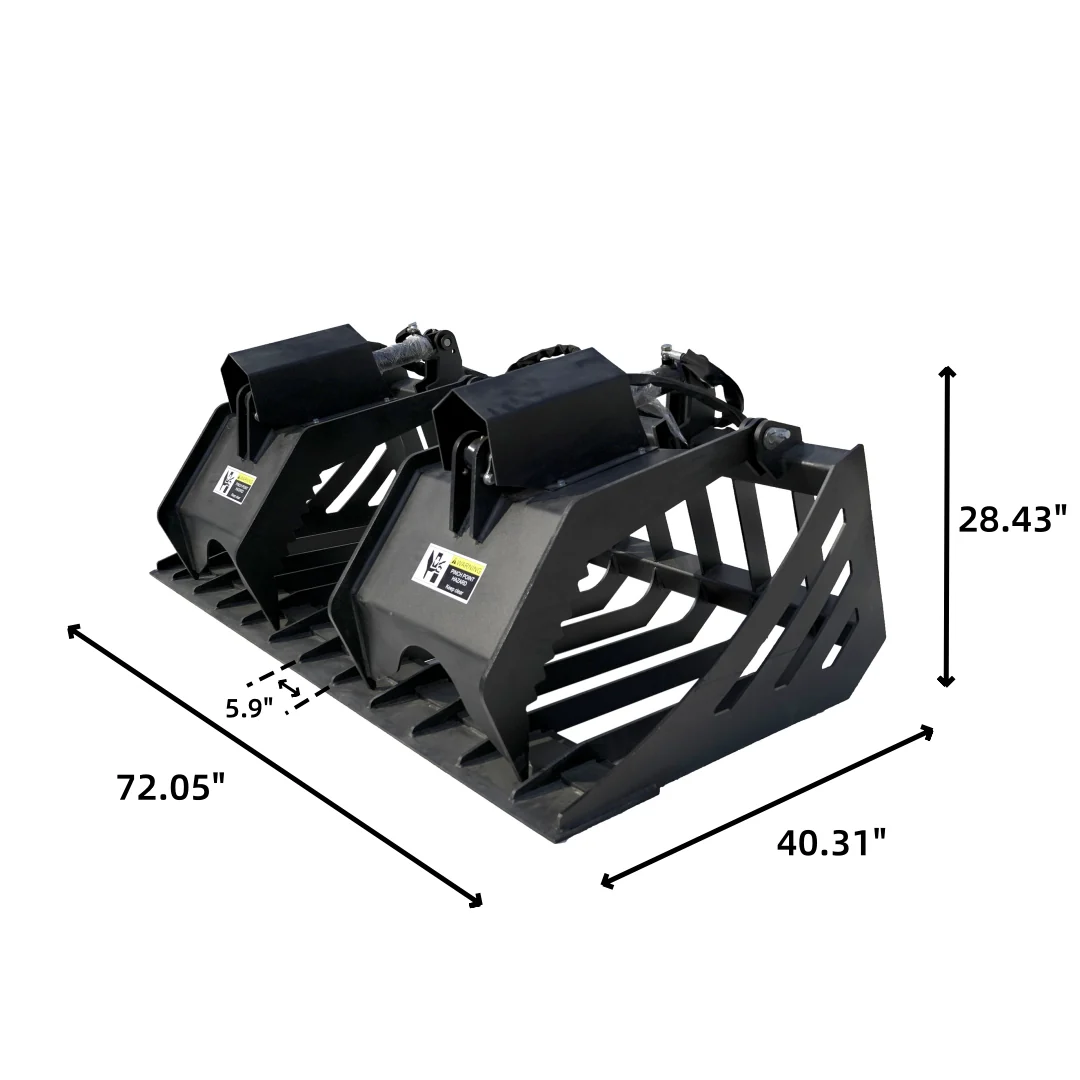

Specification



Product Width	75.98''
Product Length	40.31''
Product Height	28.42''
Working Width	72''
Grapple Widths	20" (I.D.)
Operating pressure	17-21 Mpa
Working capacity	0.5 m3
Opening distance	41.73''
Weight	692.25 lbs
Hydraulic cylinder stroke	6.50''
Hydraulic installation distance	17''
Max lifting capacity	2000 lbs
Gripping force	3000psi

Features

• Connection: Universal Skid Steer Hookup
• Surface: Durable Powder Coated finish

Package Size

• LxWxH (inch): 76x44x30
• Weight (lb): 827
• Forklift or equivalent is required for unloading
