Skid Steer Heavy Duty Hydraulic Pole Setter Grapple Rock

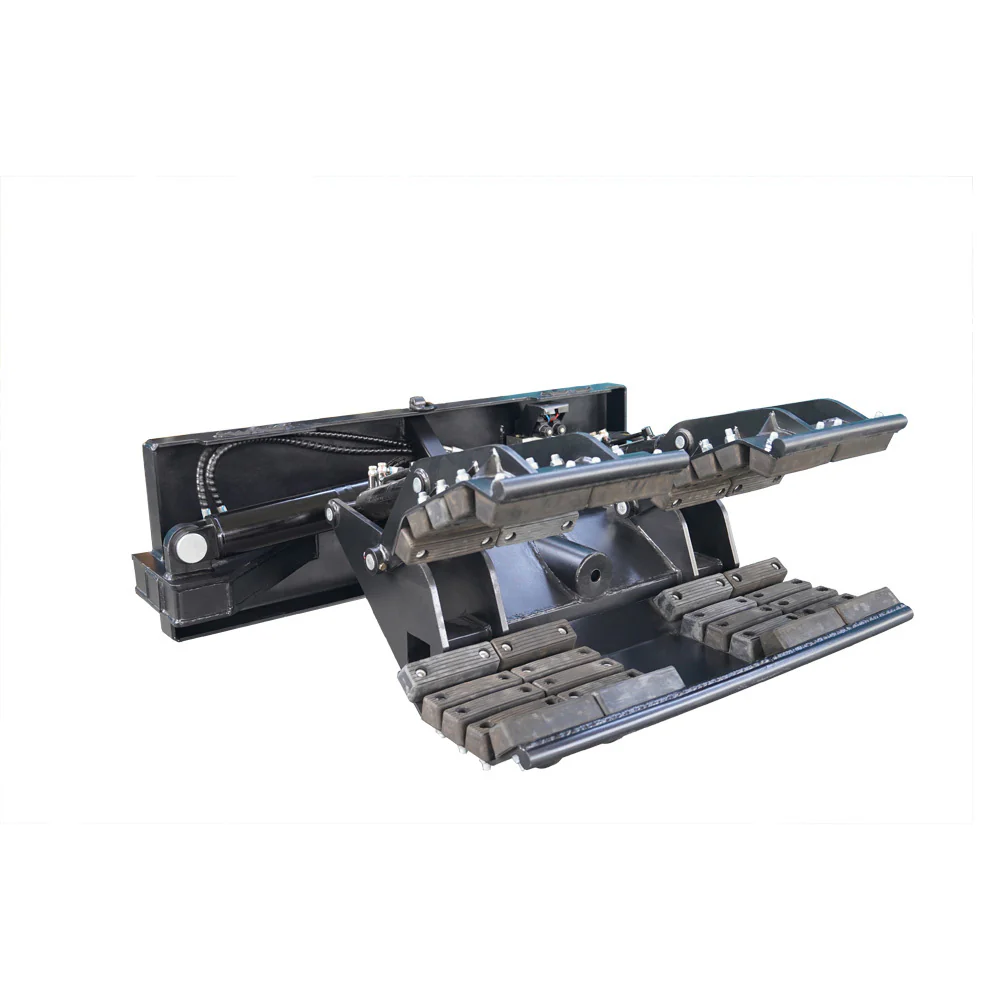

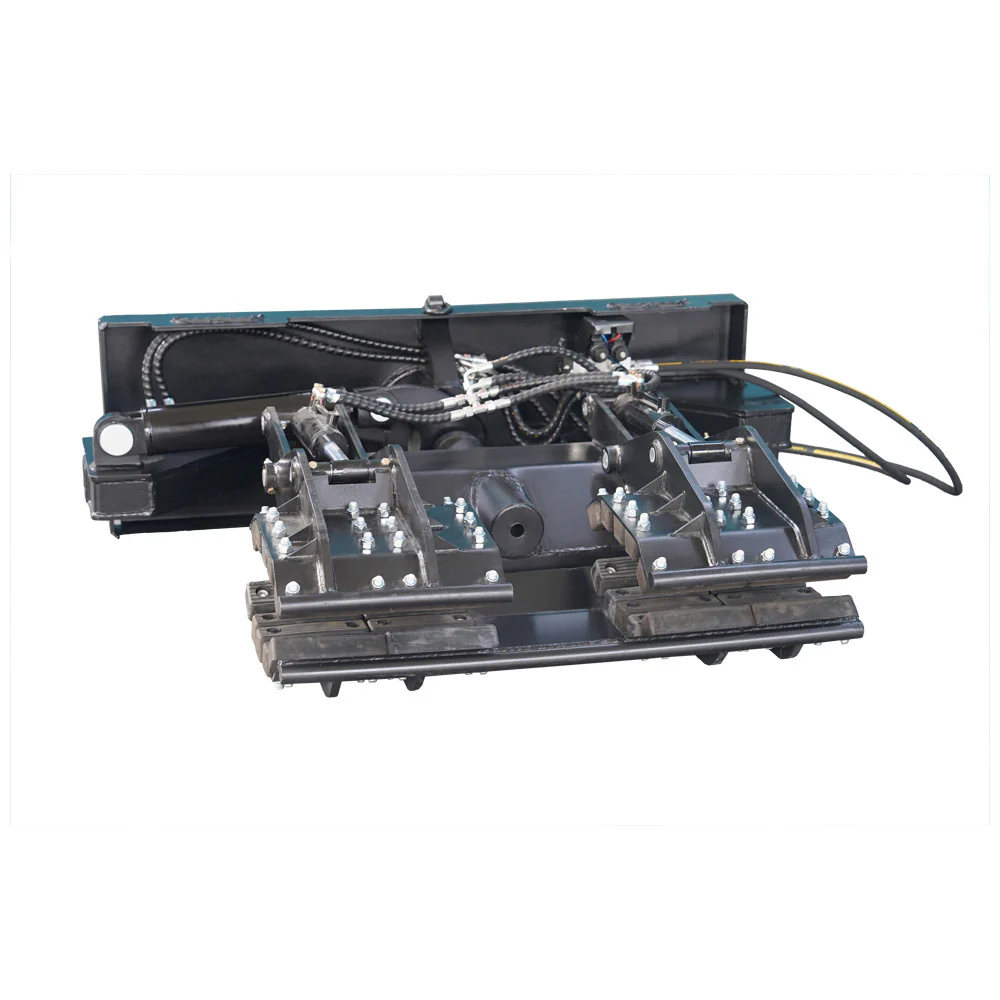

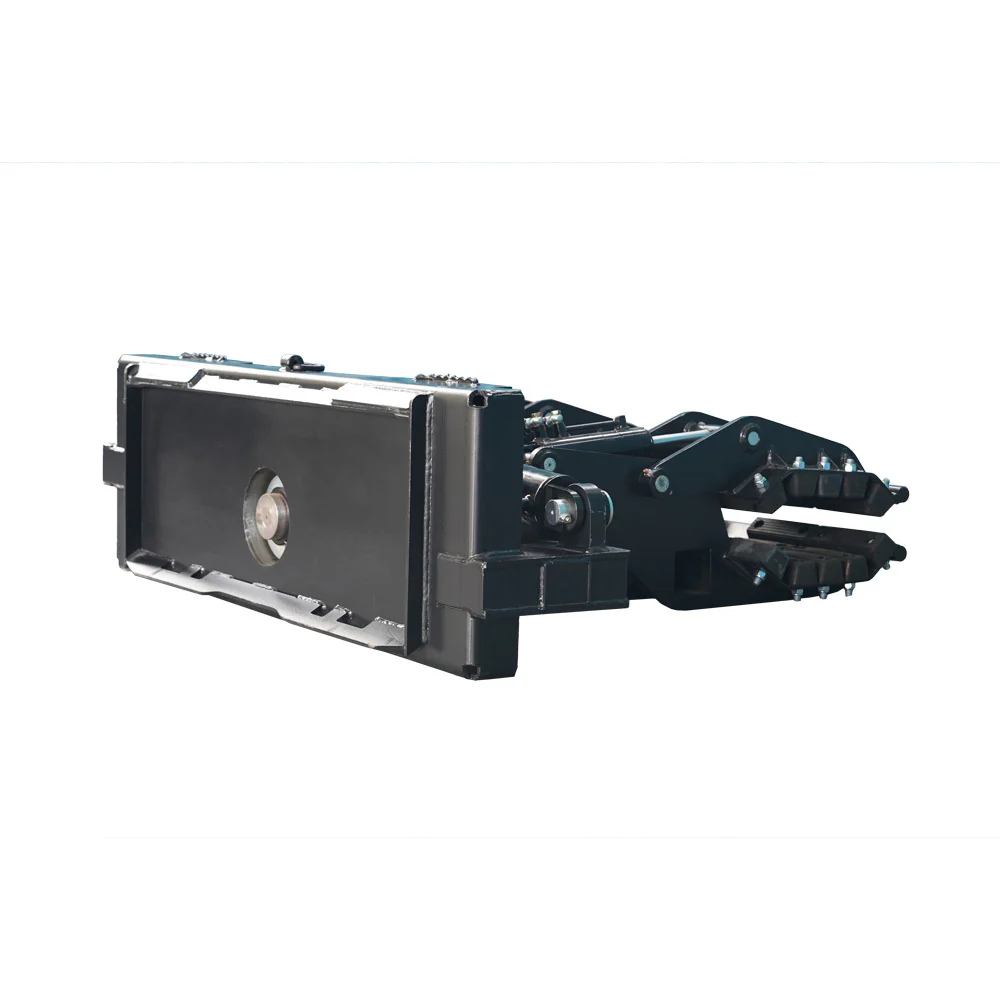

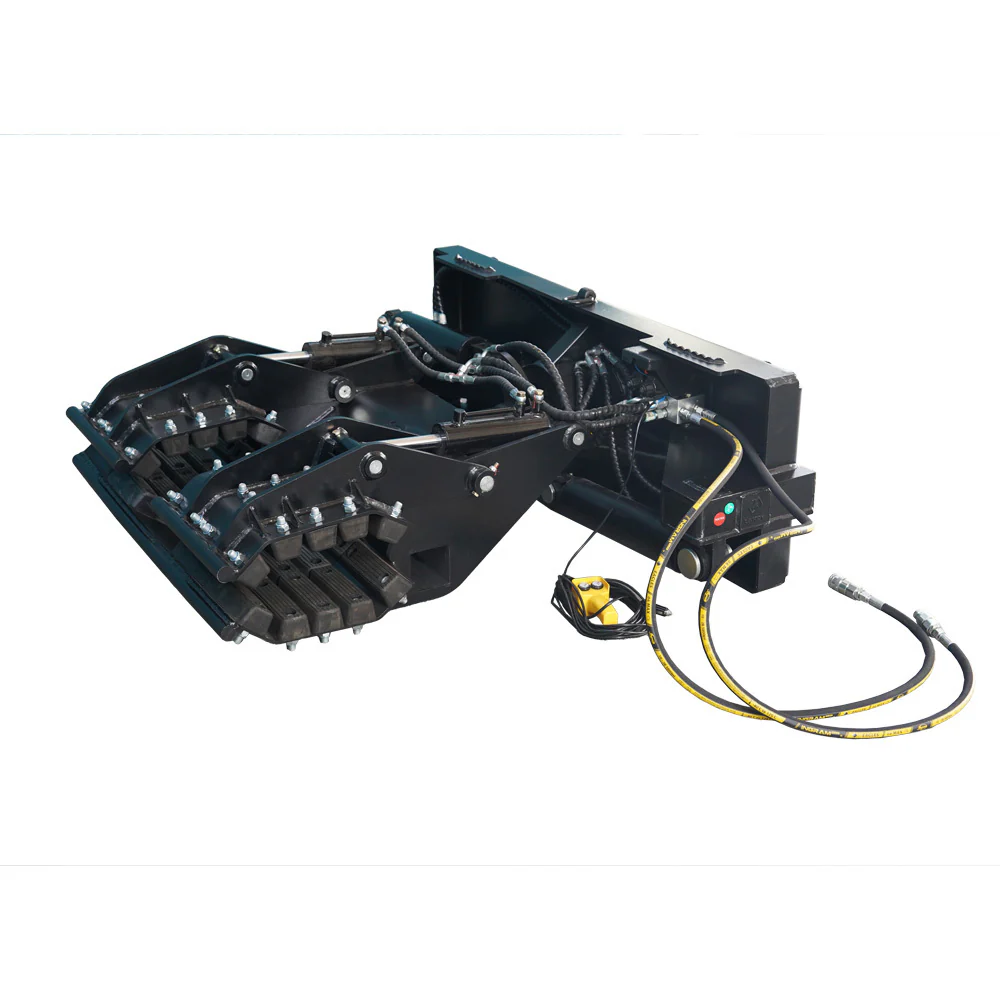

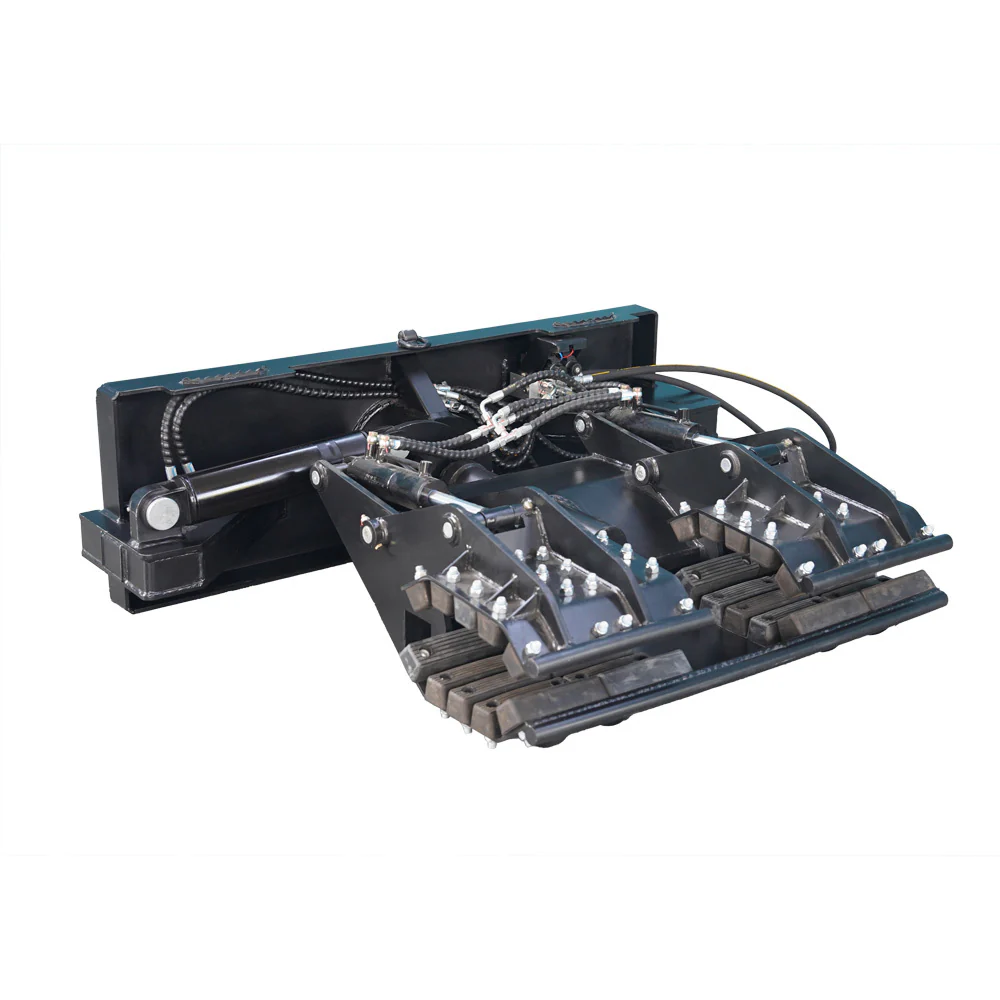

The Heavy Duty Pole Setter is designed to handle big, heavy utility poles up to 45 feet long. With the Heavy Duty Pole Setter, the operator can pick up a pole on the ground, or on a trailer, and rotate up to the vertical. At this point the operator can easily position the pole the way he wants, without any effort, and with a complete security. It opens to 22 inches and closes down to 5 inches (0 inches with optional inserts), and assures quick and easy loading, unloading, pulling or setting of 45 foot utility poles. The Heavy Duty Double Pole Claw eliminates the need for cranes, slings, and man-hours. The Rubber lining prevents damage, and the second sequencing claw allows for precision setting.
Specifications
| Main Color | Black |
| Main Material | Steel |
Dimensions & Weights
| Assembled Length (in.) | 63.96 |
| Assembled Width (in.) | 51.79 |
| Assembled Height (in.) | 20.12 |
| Weight (lbs) | 1376.06 |
Product Features

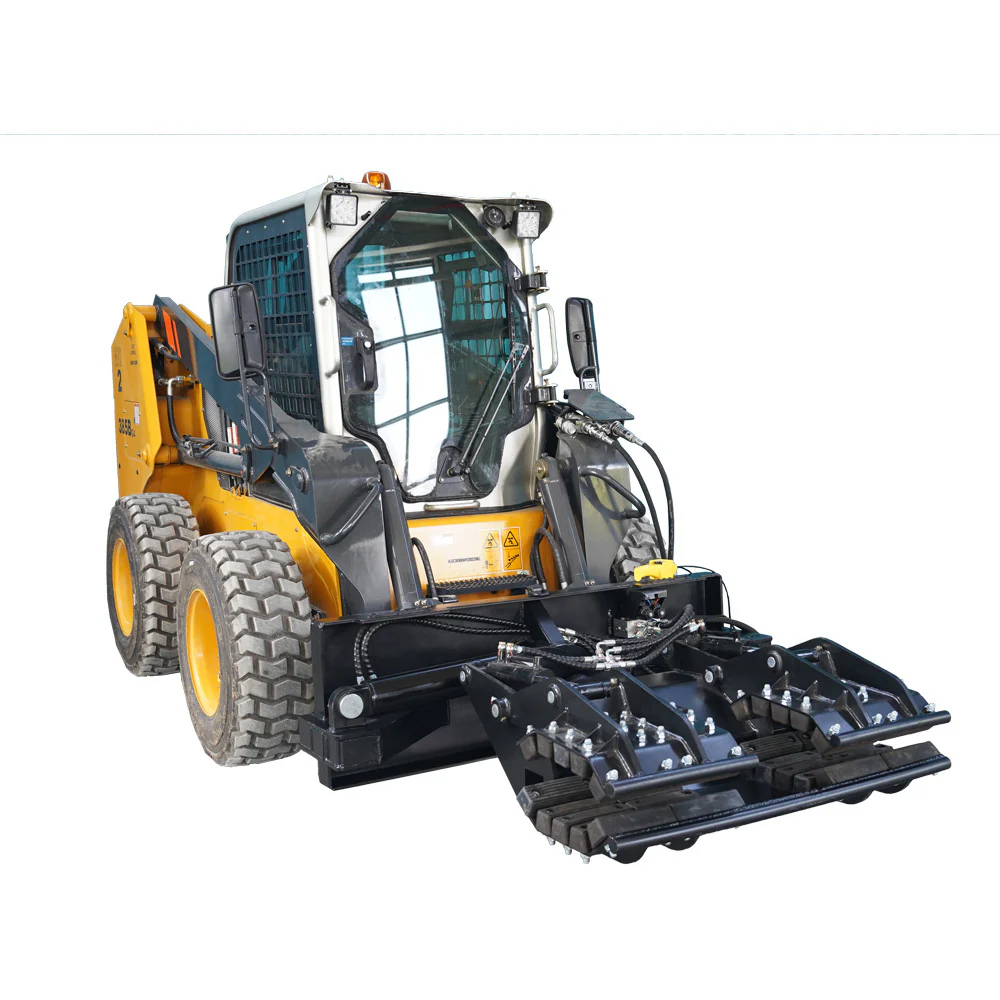

- Fit all the Skid Steers equipped with the Universal Quick Tach.
- Rotates to 115 degrees; Made of 1/2 inch steel grade 80 or higher.
- Designed with 2 independent jaws that open and close one after another for more security and safety.
- Designed with a double cylinder rotating plate for more stability and precision.
- Comes standard with rubber lining to protect the pole.
- The clamping is activated by two 3’’ X 6’’ cylinders.
- The backing plate is designed to carry the pole above the skid steer to facilitate the pole transportation and reduce the natural movement of the pole.
- Comes complete with flush faced coupler, spring hose mount and wiring harness.
| Package Size (LxWxH) | 68 x 55.7 x 27.6in |
| Package Weight | 1457lb |
Original: $5,900.00
-65%$5,900.00
$2,065.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Heavy Duty Pole Setter is designed to handle big, heavy utility poles up to 45 feet long. With the Heavy Duty Pole Setter, the operator can pick up a pole on the ground, or on a trailer, and rotate up to the vertical. At this point the operator can easily position the pole the way he wants, without any effort, and with a complete security. It opens to 22 inches and closes down to 5 inches (0 inches with optional inserts), and assures quick and easy loading, unloading, pulling or setting of 45 foot utility poles. The Heavy Duty Double Pole Claw eliminates the need for cranes, slings, and man-hours. The Rubber lining prevents damage, and the second sequencing claw allows for precision setting.
